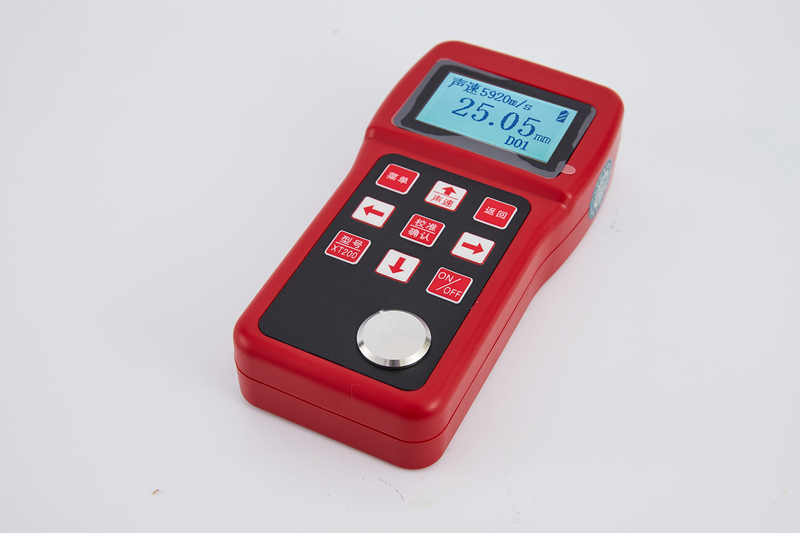

HT 2430 Ultrasonic thickness gauge

Product description:

Ultrasonic thickness gauge
  • TIME2110 Ultrasonic Thickness Gauge
  • TIME®1100 Ultrasonic Flaw Detector
  • 580 Ultrasonic Thickness Gauge
  • 570 Ultrasonic Thickness Gauge

Share With:

We"re here to help:
Easy ways to get the answers you need.
Send E-mailChat Now

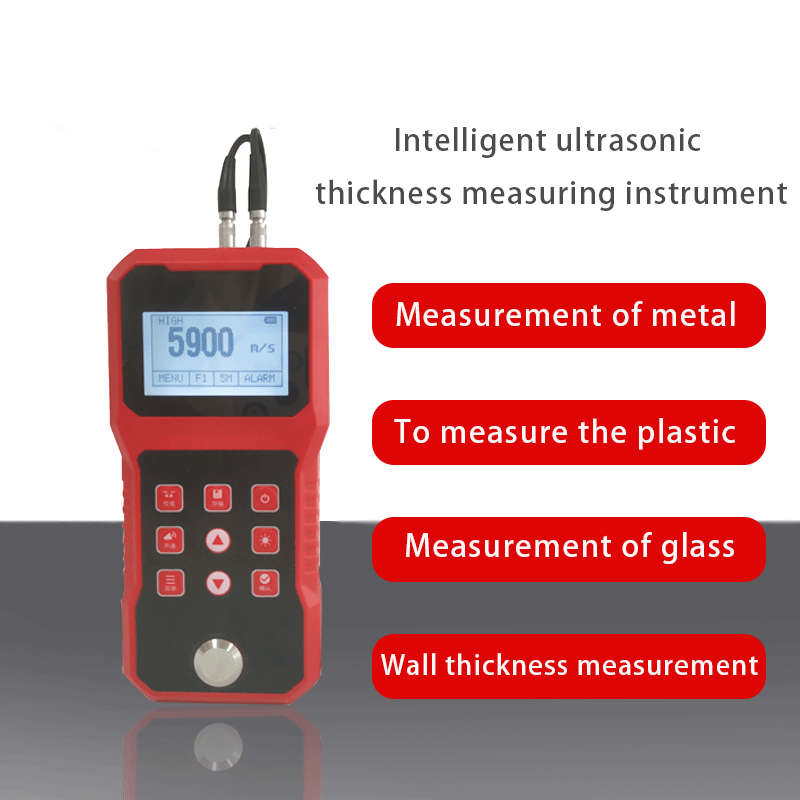

intelligent ultrasonic thickness measuring instrument

This instrument is intelligent this instrument is intelligent ultrasonic thickness measuring instrument, using the latest high performance, low power consumption microprocessor technology, based on the principle of ultrasonic measurement, can measure the thickness of metal and other materials, and can measure the speed of sound of the material.It can monitor all kinds of pipelines and pressure vessels in production equipment, and monitor their thinning degree after being corroded in the process of use. It can also accurately measure all kinds of plates and all kinds of processed parts.The instrument can be widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace and other fields..



 1.suitable for measuring metal (such as steel, cast iron, aluminum, copper, etc.), plastic, ceramic, glass, glass fiber and other any good conductors of ultrasonic thickness;
2.can be equipped with a variety of different frequency, chip the size of the probe is used;
3. known thickness can reverse measuring sound velocity, in order to improve the accuracy of measurement;
4. coupling state prompt function;
5. have EL backlit display, convenient to use in dark environment;
6. have surplus capacity indicator function, can real-time display the battery remaining power;
7. dormancy and automatic shutdown, automatic power saving function.
8. compact, portable, high reliability, suitable for bad operating environment, vibration and impact resistance and electromagnetic interference;



Performance metrics and features

Display method

High contrast 128*64 LCD display, high brightness EL backlight

Measuring range

0.75mm ~ 600.0mm(steel)

Material is the speed of sound

1000 m/s ~ 9999 m/s



Indicate value accuracy error

Measuring range 0.28mm ~ 3.3mm, resolution 0.01mm, allowable error ±0.05 Measuring range 3.3mm ~ 99.99mm, resolution 0.01mm,
allowable error ± (1‰H+0.04mm) Measuring range 100.0mm ~ 300.0mm, resolution 0.01mm, allowable error ±3‰H Measuring range 300.0mm
~ 600.0mm, resolution 0.01mm, allowable error ±5‰H Note: H is the thickness of measurement

Measurement cycle

6 times per second for single point measurement

Calibration mode

4mm automatic correction/user-defined correction (single point correction/double point correction)

Measurement functions

Minimum reading capture, average measurement, limit measurement, difference measurement and other software functions are optional

Measurement model

R-B1 (transmit pulse to primary echo)

Dynamic measurement of sound speed function

The sound velocity of the measured workpiece can be dynamically scanned and measured by input known thickness

Intelligent power supply function

After being idle for a period of time, the instrument will automatically shut down the battery low voltage indication


Calibration prompt, overrun prompt


40 sets of thickness measurement data (measured value only, sound velocity value) 40 sets of parameter data (including
measurement value, instrument setting and other parameters)



The unit type

Metric (mm)/British (inch) optional

Working time


Power supply mode

Two size 5 batteries

Working temperature



Approx. 245g (battery included)


145mm×74mm×32 mm (Height × Width × Thickness)
