conclusion of torsion test
Product description:

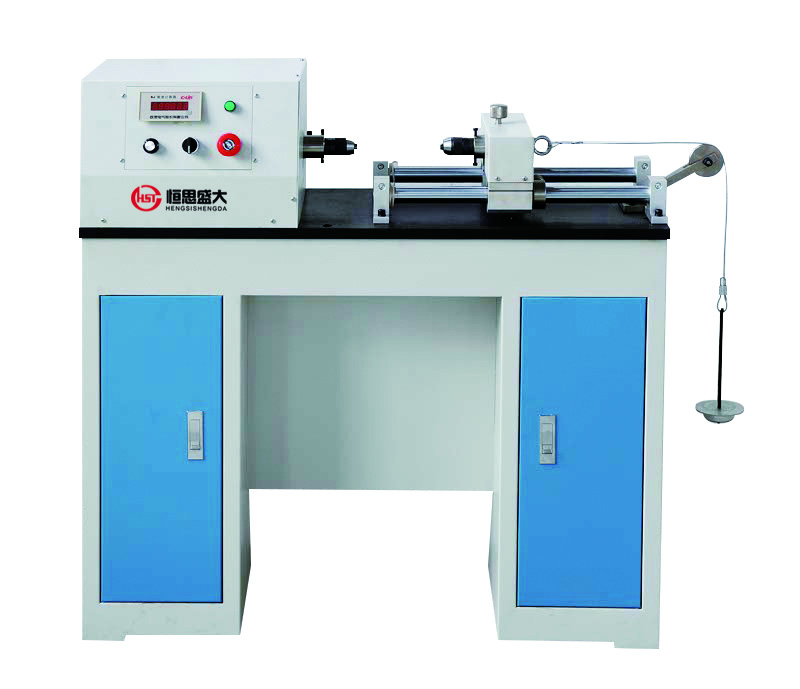

It is mainly used for diameter 0.2~20mm metal wire torsion testing.The function is determine metal wire to withstand severe plastic deformation in one-way or two-way reversed ability
Share With:
1.Application:
It is mainly used for diameter 0.2~20mm metal wire torsion testing.The function is determine metal wire to withstand severe plastic deformation in one-way or two-way reversed ability and display of wire surfaceand inner defect.It is a reliable measure instrument for producing and using wire units.
2.Main Technical Specifications:
|
Model |
EZ-3 |
EZ-10 |
EZ-20 |
|
Range Of Specimen Diameter |
0.2-3mm |
1-10mm |
3-20mm |
|
Length Of Clamping Wire |
0-320mm |
50-520mm |
|
|
Test Speed (r/min) |
0-180 |
0-60 |
|
|
Two Chuck Coaxiality |
<0.4 mm |
||
|
Parallel Degree |
<0.2 mm |
||
|
Jaw Hardnss |
HRC55-64 |
||
|
Power Supply |
AC220V±10%,50Hz |
||
