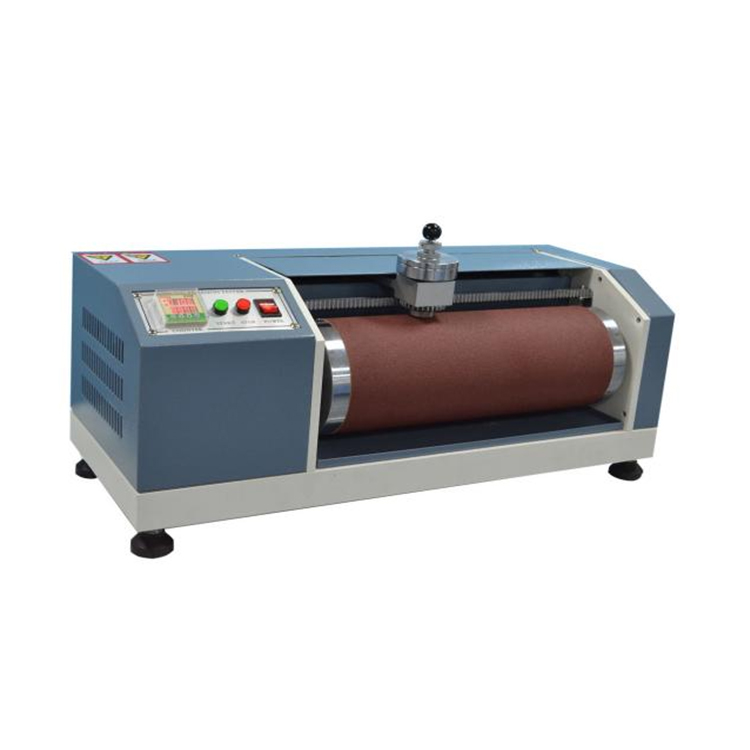

HST-MS150 DIN Roller Abrasion Machine
Product description:
HST-MS150 DIN Roller Abrasion Machine
Share With:
Application :
This DIN Abrasion Resistance Tester is to test the friction of surface by a particular piece of sandpaper, After friction for a certain time, and then assess the condition of material surface, weight, volume and thickness, from this standard to assess the abrasive nature of materials.This machine is suitable for wear testing of elastic materials, rubber, tires, conveyor belts, conveyor belts, shoe soles, soft synthetic leather, leather and other materials. It has the characteristics of high efficiency, good reproducibility and easy operation.
Standard:
GB/T 9867、GB/T 20991、GB/T 26703、QB/T 1002、EN ISO 20344、ISO 4649、DIN 53516
Technical Specification:
|
Roller diameter |
φ150mm |
|
Roller length |
460 mm |
|
Roller speed |
40rpm |
|
Wear stroke |
40mm(20 mm) |
|
Inclination |
3° |
|
Test piece diameter |
φ16 mm |
|
Thickness |
6~15 mm |
|
Test load |
2.5N,5N,10N |
|
Volume |
95*66*31cm |
|
Weight |
About50kg |
|
Power supply |
220V 50HZ |
