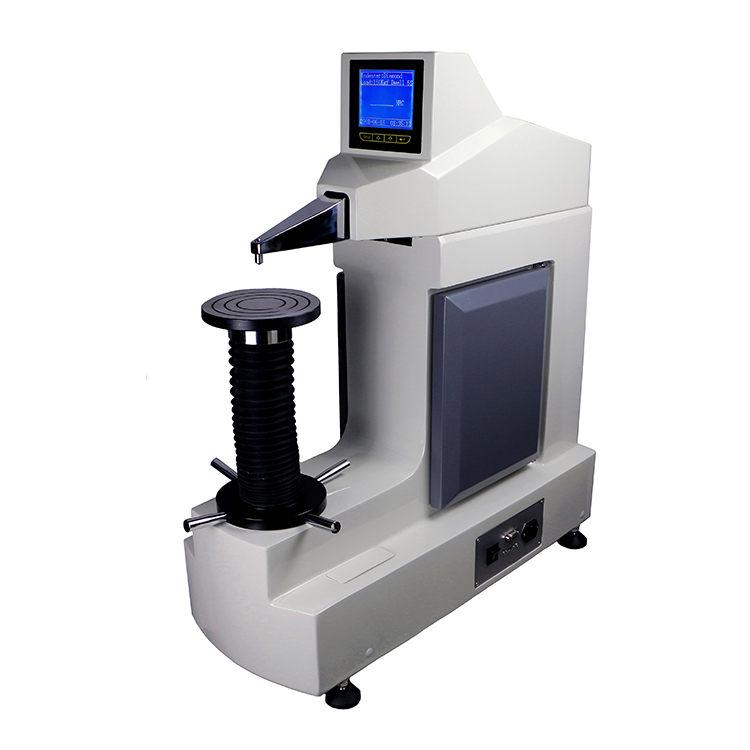

HST900-M Series Digital Rockwell /Superficial Rockwell Hardness Tester

Product description:

HST900-M Series Digital Rockwell /Superficial Rockwell Hardness Tester
  • HR-150A Manual Rockwell Hardness Tester
  • HRS 150/45DX-ZXY Fully Automatic Rockwell Hardness Tester
  • HRS-150D-ZXY Fully Automatic Rockwell Hardness Tester
  • HRS-45D-Z Automatic Rockwell Hardness Tester

Share With:

We"re here to help:
Easy ways to get the answers you need.
Send E-mailChat Now

Test features:

l The test force are applied via a closed-loop control unit with a load cell, a DC motor and an electronic measurement and control unit replace traditional dead weights. The result is highly accurate measurements at all test loads up to 0.5%.

l Simple plug - and - play tech allows for much more quick and easy installation than traditional weights type machine.

l Manual handle wheel pre-load. Automatic main-load and testing cycle.

l Extended dolphin nose allows verticaltest height of 300mm and throat depth of 220mm.

l Integrated casting body with more wide basement leads to permanent stability.

l RS232 and USB port to PC.

Hardness Tester Basic functions:
lTwin tester--Regular Rockwell & Rockwell Superficial hardness for metal and plastic material.
lHorizontal dolphin nose Indenter is suitable also for internal and external testing.
lTesting on Surfaces difficult to reach. Testing internal surface of rings and tubes.
lProvided with many features such as high measuring precision, wide measuring range with 30 Rockwell scales.
lThe tester is suitable for testing of carbon steel, alloy steel, cast iron, non ferrous metal.
lAutomatic testing cycle: Lifting of part, pre-loading, loading, dwell, unloading, results will be finished automatically.
lMeasuring results digitally displaying and can be printed, or transmitted to external computer automatically by USB port.
lTest HR value can be converted to the value of HB, HV, HK and σb value.
lThe tester meets all the following standard such as ISO 6508-2, ASTM E18.

Hardness Tester Parameters

Preload

29.4N(3kgf), 98.1N (10kgf)

Total test force

147.1N(15kgf), 294.3N(30kgf), 441.3N(45kgf), 588.4N (60kgf), 980.7N (100kgf), 1471N (150kgf)

Scales

HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y

HRA,HRB,HRC,HRD,HRE,HRF, HRG,HRH,HRK,HRL,HRM,HRP, HRR,HRS,HRV

Load dwell duration

2~50s, can be set and stored

Resolution

0.1HR

Display

High definition backlight LCD

Operation

Menu selectable, Membrane keypad

Upper/lower limits setting & alarming

Data statistics

Avg., Max., Min., S, R

Curved surface auto correction

Memory

Max 400 items of test results stored automatically

Testing Capacity

300mm (vertical), 220mm (horizontal)

Dimensions

690mm×280mm×860mm

Power supply

AC, 220V/110V, 50~60Hz, 4A

Net weight

80 kg

Gross weight

115kg
