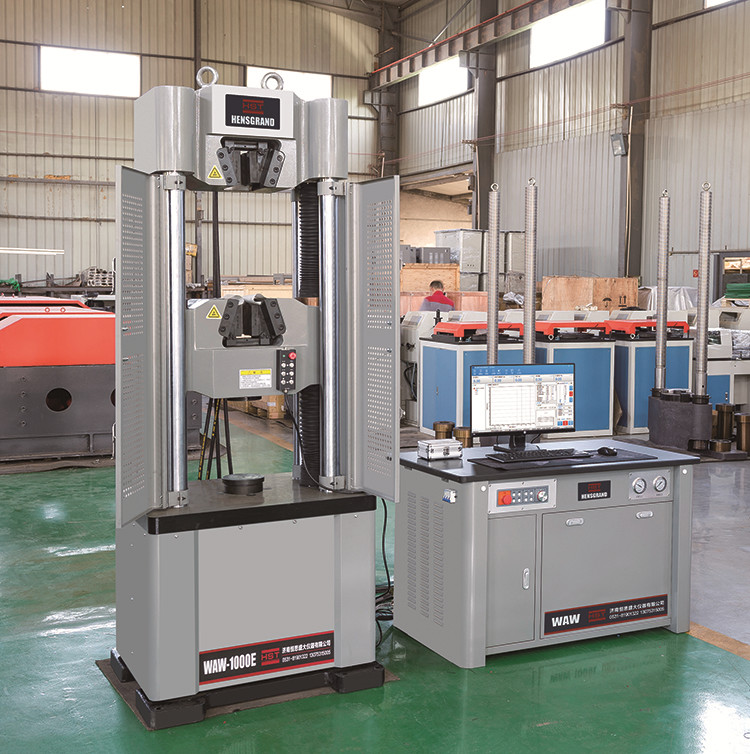

100ton/1000kN Hydraulic universal tensile testing machine

Product description:

100ton/1000kN Hydraulic universal tensile testing machine
  • WAW-F Electro-hydraulic Servo Strength Testing Machine(200Ton, 300Ton)
  • LAW-H Computer Control Steel Strand Tension Testing Machine
  • WAW-F Steel rebar Single Test Space Hydraulic Tensile Testing Machine(600kN, 1000kN)
  • WAW-F 1000kN,100Ton Electro-hydraulic Servo PC Strand Tensile Strength Testing Machine

Share With:

We"re here to help:
Easy ways to get the answers you need.
Send E-mailChat Now

Application:

The machine adopts hydraulic loading, Computer Display, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on.It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.

Standards:

ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.


Specifications:

Model

WEW-1000D

Structure

4 columns and 2 screws

Control way

loading process manual control,computer automatic data dealing

Max.load (kN)

1000kN

Load accuracy

≤±1%

Load range

2%-100%FS

Load resolution

1/300000

Deformation Measurement Range

2%100%FS

Deformation accuracy

≤±1%

Displacement resolution (mm)

0.01

Displacement error

≤±0.5%

Max.piston stroke(mm)

250

Max piston moving speed

0-90mm/min Manual adjustment

Crosshead lifting speed

200mm/min

Max. tension test space

650mm (can customize)

Max.Compression Test Space

500mm (can customize)

Column clearance(mm)

525

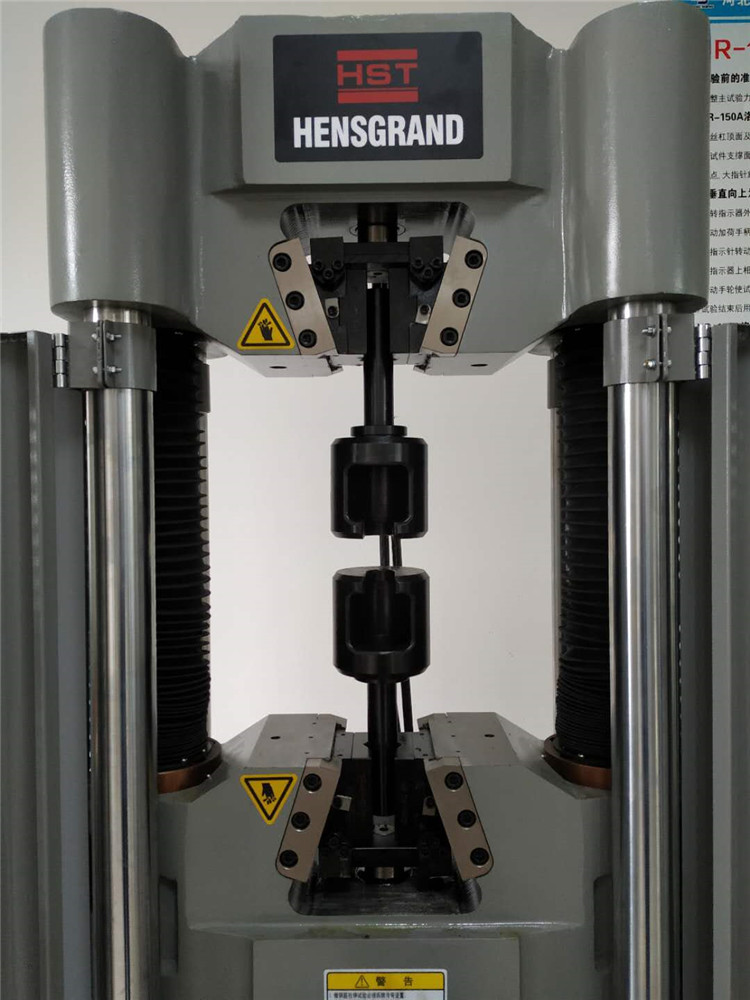

Clamping method

Hydraulic clamp

Round specimen clamping range (mm)

Φ1326,Φ2640, (Φ6-Φ13 , Φ40-Φ50 Optional )

Flat specimen clamping range (mm)

0-15 (15-30 Optional)

Flat specimen clamping width(mm)

80

Compression plate size (mm)

φ160

Bending roller distance(mm)

450

Width of bending rollers (mm)

120

Power supply

3-phase,AC380V, 50Hzcan be customized
