300KN/600KN/1000KN/2000KN/3000kn tensile testing machine
Product description:
It is suitable for doing testing experiments such as the tensile, compression, bending and shear testing .
Share With:
Application
It is suitable for doing testing experiments such as the tensile, compression, bending and shear testing for all kinds of
metal materials and nonmetal materials such as plastic, concrete, cement and so on.
Standards
ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards
Main Specifications
|
Model |
WE-100D |
WE-300D |
WE-600D |
WE-1000D |
|
|
Structure |
Four column Two ball screw |
||||
|

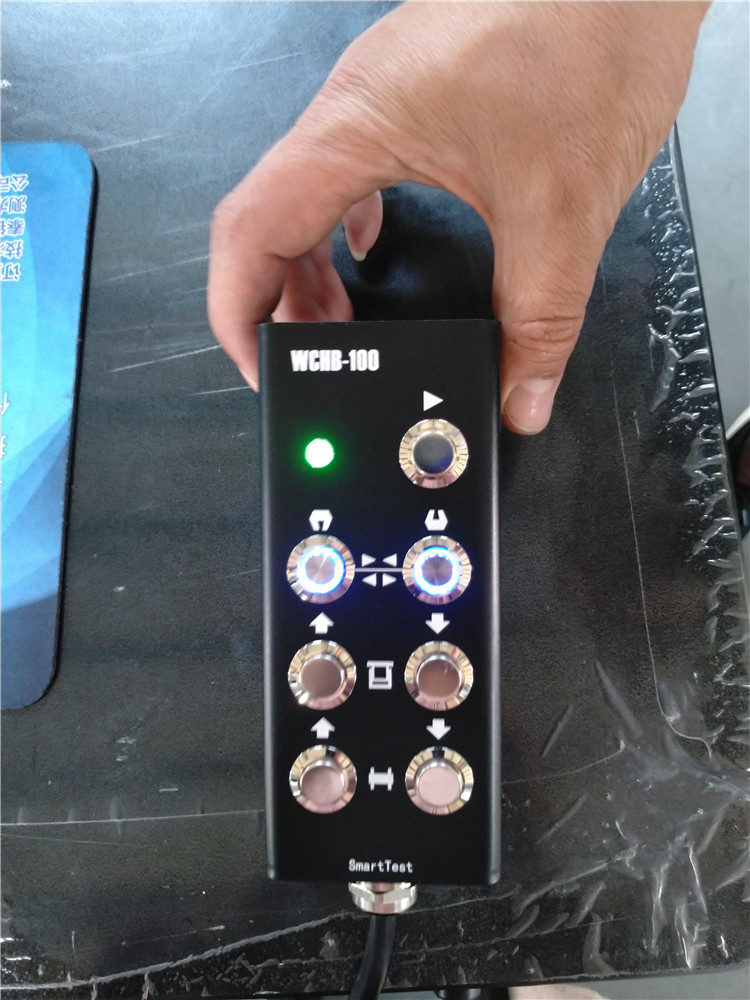

Control way |
loading process manual control |
||||
|
Max. Load (kN) |
100 |
300 |
600 |
1000 |
|
|
Load range |
4%~100%FS |
||||
|
Load accuracy |
≤±1% |
||||
|
Test force resolution value(kN) |
0.01 |
||||
|
Clamping Method |
Manual（Optional Hydraulic） |
||||
|
Mas piston moving speed (mm/min) |
50 |
||||
|
Gantry adjust speed(mm/min) |
150 |
||||
|
Max piston stoke (mm) |
250 |
||||
|
Max. Tensile test space(mm) |
650 |
||||
|
Max.compression test space(mm) |
500 |
||||
|
Round sample clamping diameter(mm) |
Φ6-Φ13 |
Φ6-Φ26 |
Φ13-Φ40 |
Φ13-Φ40 |
|
|
Flat sample clamping diameter(mm) |
0-15 |
0-15 |
0-15 |
0-30 |
|
|
Clamping width of flat sample(mm) |
70 |
70 |
75 |
75 |
|
|
Pressure plate size(mm) |
Φ160/204x204(optional) |
||||
|
Bending test branch roller width(mm) |
140 |
||||
|
Roller distance of bending(mm) |
600 |
||||
|
Voltage |
380V/50Hz/3Phase（can be customized） |
||||
