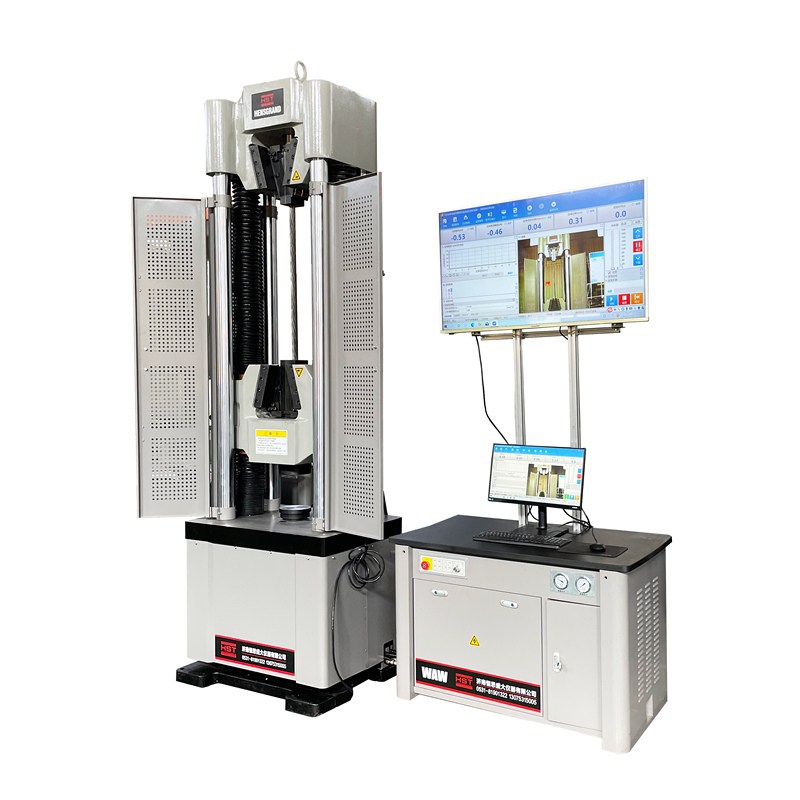

WAW-1200E 1200KN/ 120TON Computer Control Universal material testing machine
Product description:
WAW-1200E 1200KN/ 120TON Computer Control Universal material testing machine
Share With:
Application
This machine is suitable to test various metallic & non-metallic materials for tension, compression, bending and shearing strength. It is capable of testing the characters of materials on physical & technology properties.
It is simple, easy to operate and widely used in works, laboratories and high schools for material properties research and quality control. Equipped with the computer & Software & printer, it can display, record, process and print the test results, and control test procedures as per the set program and can draw test curves automatically in real time.
Standards:
Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.
Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4.
Specifications
|
Model |
WAW-1200E |
|
Structure |
6 Column (Four Columns Two Ball Screws) |
|
Max. Load(KN) |
1200 |
|
Load Accuracy |
≤± 1%/ ≤± 0.5% |
|
Load Range |
2%~100%FS/ / 1％～100％ |
|
Displacement Resolution |
0.01mm |
|
Max. Tension Test Space(mm) |
930 |
|
Max.Compression Test Space(mm) |
640 |
|
Column Effective Spacing(mm) |
610 |
|
Max. Piston Stroke(mm) |
250 |
|
Clamping Method |
Hydraulic Clamping |
|
Round Specimen Clamping Range(mm) |
Φ13-Φ26, Φ26-Φ45 |
|
Flat Specimen Clamping Range(mm) |
0-20 |
