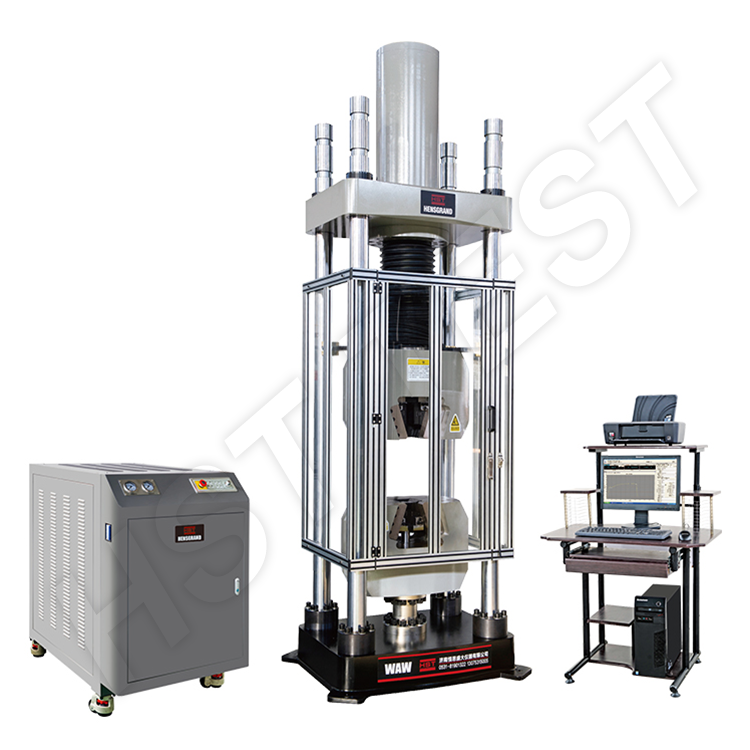

WAW-H 1000,2000kN Double Cylinder Electro-hydraulic Servo Universal Testing Machine
Product description:
WAW-H 1000,2000kN Double Cylinder Electro-hydraulic Servo Universal Testing Machine
Share With:
1. Application
WAW-H Computerized Electro-hydraulic Servo Universal Testing Machine adopts Hydraulic Loading, Computer Control, easy and convenient to operate. The space adjusting & test processes is Software Control. The test result could be transferred to the software in the computer for further analysis. It is mainly used to execute the tension, compression, bending test for metal materials. It is very suitable for making test to different metal materials under high toughness and hardness against extreme big loading force.
2. Standards
ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.
3. Main Specifications
| Model | WAW-1000H, 2000H |
| Structure | Four Columns Two Oil Cylinders |
| Control Way | Constant Stress Uniform Deformation Constant Displacement Three Closed Loop Control And Program Control |
| Max.Load | 1000KN, 2000KN |
| Load Accuracy | ≤± 1% |
| Load Range | 2%~100% FS |
| Load Resolution | 1/300000 |
| Deformation Measurement Range | 2%~100%FS |
| Deformation Indication Relative Error | ≤ ±0.5% |
| Displacement Resolution | 0.01mm |
| Displacement Indication Relative Error | ≤ ±0.5% |
| Max. Piston Moving Speed | 0~100mm/min Stepless Speed Adjusting |
| Clamping Method | Hydraulic Automatic Clamping |
| Round Specimen Clamping Range | Φ10~Φ30 mm, Φ30~Φ50 mm, Φ50~Φ70 mm |
| Flat Specimen Clamping Range | 0~25mm, 25~50mm |
| Flat Specimen Clamping Width | 140mm |
| Flat Specimen Clamping Length | 160mm |
| Compression Plate Size | Φ240mm |
| Bending Roller Distance | 450mm |
| Width Of Bending Rollers | 120mm |
