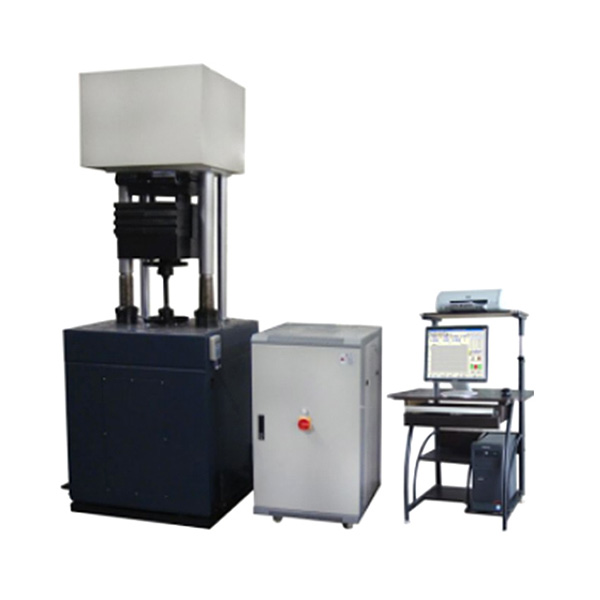

PLG Series Electromagnetic Resonance High Frequency Fatigue Testing Machine

Product description:

Application: PLG Series Electromagnetic Resonance Fatigue Testing Machine is used for fatigue tests on metallic materials and components under tension, compression or reversal load. Equipped with rele
  • HST-P 50kn 100kn 200KN 250KN 5Ton 10Ton 20Ton 25Ton Control Electro-hydraulic Servo Fatigue Tester
  • HST-PU-22001-A0-000 Hydraulic Oil Circuit Control Valve Group
  • HST-P20JZ 0.2/s Servo Dynamic static fatigue testing system for shock absorber
  • Fatigue Test systems for the railway industry

Share With:

We"re here to help:
Easy ways to get the answers you need.
Send E-mailChat Now
Application:
PLG Series Electromagnetic Resonance Fatigue Testing Machine is used for fatigue tests on metallic materials and components under tension, compression or reversal load. Equipped with relevant grips, three-point bending test, four-point bending test, tension and compression of sheet sample test, tension and compression of circle test, gear wheel, bolt, connecting rod,
roller chain, crackle expanding tests can be done on this machine. The series of testing machines undergo optimization design,
the structure is rational. The automatic controlled system
adopts the advanced pulse wide control system and new-type power amplifier to improve the reliability of the electric system .
It has high efficiency, easy to shake, no-stop shake, low energy consummation, high controlling accuracy, small fluctuation. The machine is complied with DIN50100.
Specifications:
Model PLG-20C PLG-100C PLG-200C PLG-300C PLG-500C
Load capacity (kN) ±20 ±100 ±200 ±300 ±500
Max. step pulse load (kN) ±20 ±100 ±200 ±300 ±500
Load capacity for dynamic (peak value) (kN) 10 or 13 50 or 70 100 or 130 150 or 180 250 or 280
Relative error of static load ≤±1%
Power 160VA 300VA 600VA 800VA 1.2KVA
Load 0.5%F-S fluctuation Dynamic 0.5%F-S
Static 0.5%F-S
Max. distance between grips(mm) 600 800 800 800 800
Max. distance between columns (mm) 420 500 540 620 720
Dimension
(mm)
Load frame 700×500
×2010
800×700
×2235
900×800
×2600
1100×1100
×2850
1500×1200
×3100
Control cabinet 600×600×1200
Weight(kg) Load frame 1500 2750 4000 7200 10000
Control cabinet 50 70 100 120 150
Optional: high temperature furnace and high temperature extensometer, fatigue crack rate test;
Software Introduction:
The operation system is under Window XP. The computer will show the load in real time, peak load (Max. &
Min.) and the testing curves.
l Over load protection;
l Testing data real-time display: In fatigue testing, it can show testing curves for different time and different
specimen. The testing curves can be in planar and three-dimensional.
l Testing data storage and analysis: Testing curve is stored into data base and it is suitable for analysis
and management.
Software features:
l Easy to operate, convenience and reliability;
l Display parameters, such as average load, alternating peak load, resonance frequency and cyclic fatigue
    times in real time.
l Strong and broad test function: routine fatigue test, program control loading test, block spectrum test,
    alternating load envelop line test (Wave shape is set as sine wave, triangle wave and square wave).
l Multiple test parameters setting mode: can take average load value, alternating peak load value as
    preset mode, also can take Max. load, stress ratio, Max & Min load as preset mode, and allow apply
    different load unit.
l Abundant data analysis and procession.
l Automatically store various kinds of test data, print test reports and test curve, complete “S-N curve” data
    procession and curve drawing, and draw frequency-time curve and load-time curve.
l Safe projective function: overload, over-current, upper and lower limit of the set load protection. Machine
    stops when test finishes or encounters emergency.
