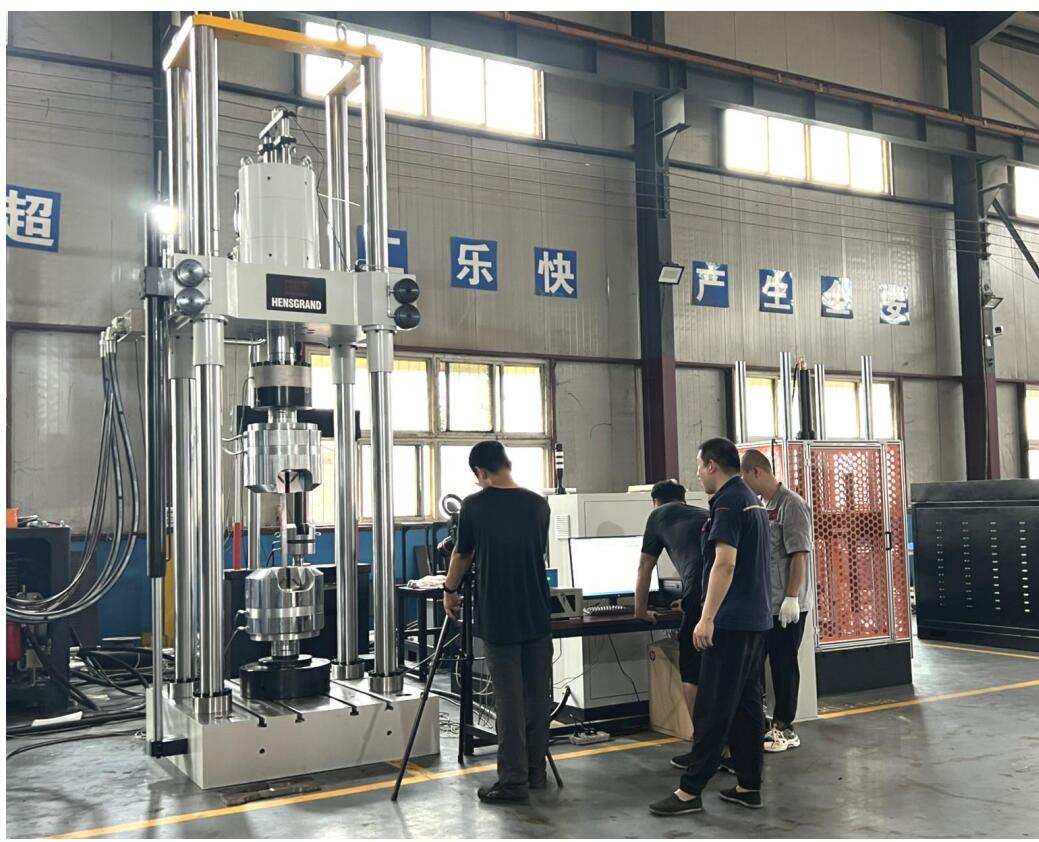

HST-F1000kN, 2000kN Electro-hydraulic Servo Static Stiffness Fatigue Tester
Product description:
HST-F1000kN, 2000kN Electro-hydraulic Servo Static Stiffness Fatigue Tester
Share With:
Application:
This series of products is easy to use, with high control precision and good reliability. It is widely used in tensile and compression of materials and components, low cycle, high cycle, crack propagation, fracture mechanics and various other dynamic and static mechanical properties tests. High and low temperature tests can be carried out with high and low temperature devices.
The testing machine is a fatigue testing equipment widely used in the world, and is widely used in the testing fields of automobiles, ships, aerospace, aviation, military, education, scientific research institutes and the like.
Specifications:
|
MODEL |
HST-F1000 |
HST-F2500 |
||
|
Maximum test force (KN) |
Static |
1000 |
2500 |
|
|
dynamic |
±1000 |
±2500 |
||
|
Measurement accuracy |
Test force |
Better than ±1% of the indication (precise grade ±0.5% ) |
||
|
Displacement |
Better than ±1% FS of the indication (precision ±0.5%FS ) |
|||
|
Deformation |
Better than ±1% of the indication (precise grade ±0.5% ) |
|||
|
Frequency range (HZ ) |
0.001-75 ( depending on the control system) |
|||
|
Frame form |
Four columns |
|||
|
Amplitude (mm ) |
±75 |
|||
|
Column distance (mm ) |
930 × 590 |
1200 × 700 |
||
|
Test space (mm ) |
1500 |
1500 |
||
