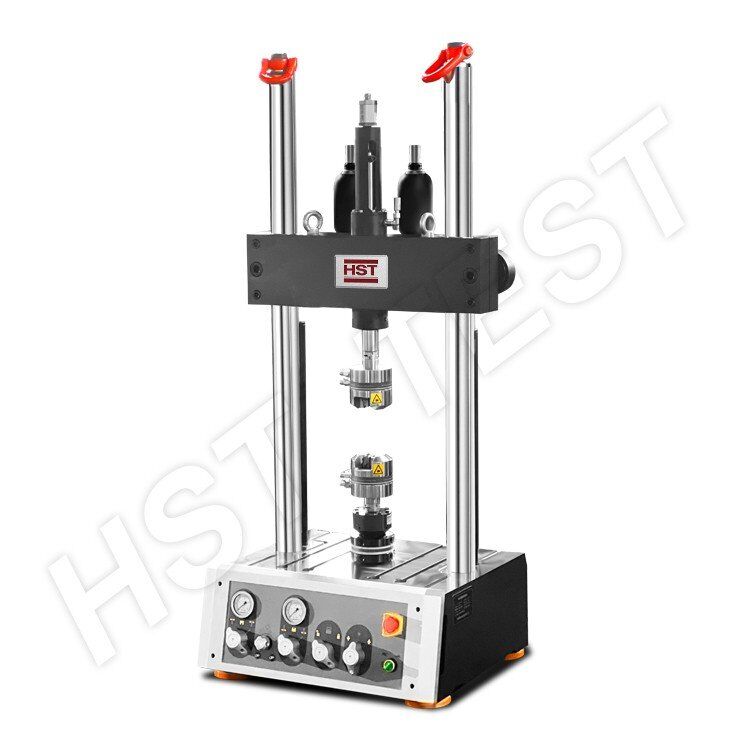

HST 370.02 Axial Tabletop dynamic Fatigue Test Systems
Product description:
HST 370.02 Axial Tabletop dynamic Fatigue Test Systems
Share With:
Application:
Mainly used to do the dynamic and static mechanical fatigue test for materials and parts . The machine could also complete the fatigue test of other structural parts with different fixture. The machine also can be used for materials or structural parts, auto parts and other static mechanical performance test. It is a popular machine for the university, research institutes, enterprises and other experimental equipment to test.
Axial
The axial configuration of the tabletop test system can be used to perform accurate and repeatable fatigue life and fracture growth studies, as well as tension, bending and compression tests of biomaterials. It runs tests up to ±25 kN (5.5 kip) with standard displacements of ±50 mm (± 2 in.), and can easily be configured for monotonic or fatigue testing.
Specifications
|
MODEL |
UNITS |
370.02 Axial |
|
Max. Load(kN) |
kN |
15, 25 |
|
Available actuator₁ |
kN |
15, 25 |
|
Actuator dynamic stroke₁ |
mm |
100, 150 |
|
Minimum vertical test space – standard height₂ |
mm |
144 |
|
Maximum vertical test space – standard height₃ |
mm |
827 |
|
Minimum vertical test space – extended height₂ |
mm |
398 |
|
Maximum vertical test space – extended height₃ |
mm |
1335 |
|
Working height₄ |
mm |
2308 |
|
Column spacing (test space width) |
mm |
460 |
|
Column diameter |
mm |
76.2 |
|
Base width |
mm |
622 |
|
Base depth |
mm |
577 |
|
Diagonal clearance – standard height₅ |
mm |
17508 |
