Tsinghua University Fatigue Testing Machine
Product description:
Tsinghua University Fatigue Testing MachineFeature:

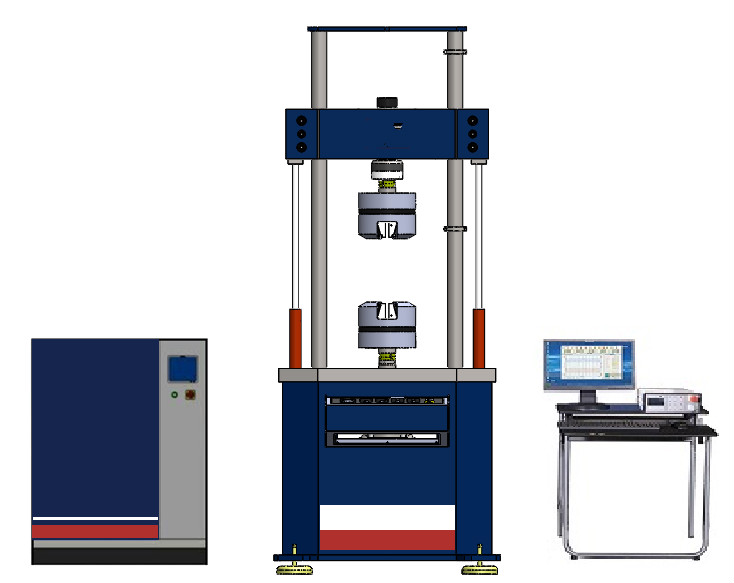

1. Test machine host: two columns, base, beams constitute enclosed frame structure, frame stiffness, no backlash, good stability. Two-column the outer surface of the hard chrome plating. Servo actuator (cylinder) at home, using double-acting cylinder piston design, convenient and flexible adjustment of the sample holder.
2. The key components: the use of international brands - American MOOG servo valve, HST-1000 controller, the United States World Civil sensors, Japan Fujikoshi pump, US company MTS displacement sensors.
3. The hydraulic servo pump station: no leak quiet technology, stable pressure output, no volatility, low noise, good heat dissipation, high filtration precision, pressure overload, oil temperature automatic over-temperature protection.
4. Control: force, displacement, deformation PID loop control, and can achieve any control mode switching smoothly without disturbance.
5. Test software: for operation under Windows test platform, with the control system can control the test system to complete all kinds of dynamic and static mechanical properties test, such as metal stretching, compression, bending, low cycle and metal fracture mechanics testing. Software self-contained, high-speed data communication with the control system, the control test system work, drawn to meet the various test curve test requirements, and independent completion of various trial
management, data storage, the test report printing.
6. Test waveforms: sine, triangle, square wave, trapezoidal wave, random wave, combination waveforms.
7. Protection: has oil plug, over-temperature, low-level, hydraulic system overload, motor overheating, fatigue preset number of times that the test piece breakage alarm shutdown feature.
