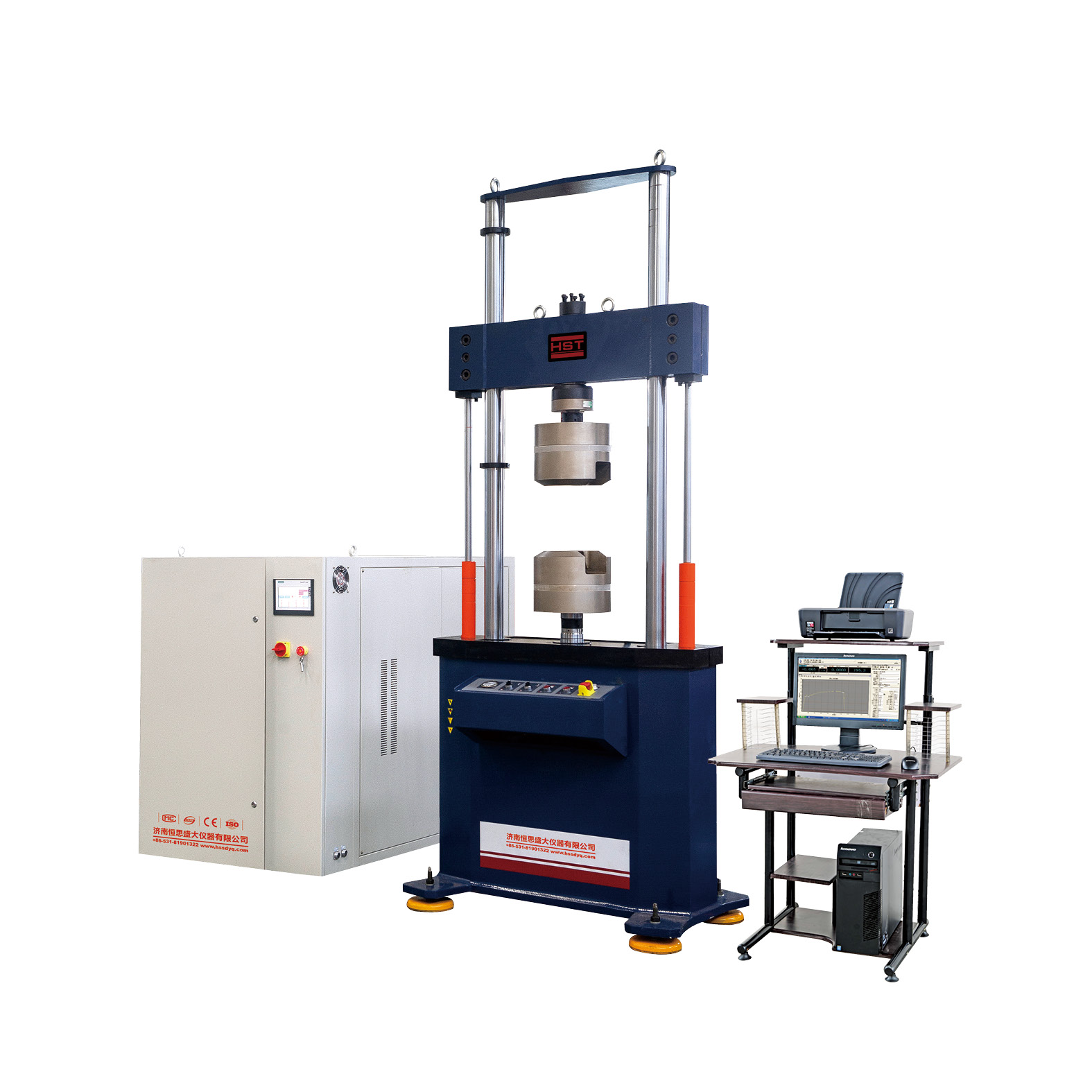

Saddle/door Fatigue Testing machine

Product description:

Saddle/door Fatigue Testing machine
  • HST-P 50kn 100kn 200KN 250KN 5Ton 10Ton 20Ton 25Ton Control Electro-hydraulic Servo Fatigue Tester
  • HST-PU-22001-A0-000 Hydraulic Oil Circuit Control Valve Group
  • HST-P20JZ 0.2/s Servo Dynamic static fatigue testing system for shock absorber
  • Fatigue Test systems for the railway industry

Share With:

We"re here to help:
Easy ways to get the answers you need.
Send E-mailChat Now

Application:

Computer Control Electro-hydraulic Servo Fatigue Testing Machine is ainly used to detect a variety of metals, non-metallic materials and small movable member, the static mechanical properties test. It can do tensile, compression, bending, low cycle and high cycle fatigue, crack growth, fracture mechanics test under sine, triangle, square wave, trapezoidal wave, random wave, combination waveform.

This Test machine is flexible, moving beam down, locking the sample holder by button operations, the use of advanced hydraulic servo drive technology loaded, high precision and high resolution dynamic load sensor magnetostrictive displacement sensor specimens force values and displacement.

Fully digital measurement and control system implementation force, displacement, deformation closed loop control, test software under WINDOWS Chinese working environment, powerful data processing capabilities, test conditions and test results are automatically saved, displayed and printed. Fully integrated into the computer-controlled test procedure, the test machine is a research institutes, metallurgy building, defense industry, universities, machinery manufacturing, transportation and other industries ideal cost-effective test systems.

Standards:

GB / T2611-2007 Tester General technical requirements

GB / T16826-2008 Hydraulic servo universal testing machine

GB 3075 Axial fatigue testing metal

JB / T9379-2002 Tension and compression fatigue test machine technical conditions

GB / T228-2010 Metallic materials at room temperature tensile test method

Main technical specifications:

Model

HWS-50

HWS-100

HWS-200

HWS-250

Load Capacity(kN)

Static

50

100

200

250

Dynamic

±40

±80

±160

±160

Measurement

Accuracy

Load

±1.0% of Reading

Displacement

±1.0% FS of Each File

Deformation

±1.0% of Reading

Function Generator

Range Of Frequency

0.001~50 Hz

Stroke of Piston(mm)

±50

±50

±75

±75

Distance Between Columns

500mm

565mm

700mm

700mm

Distance Between Grips

50~600mm
