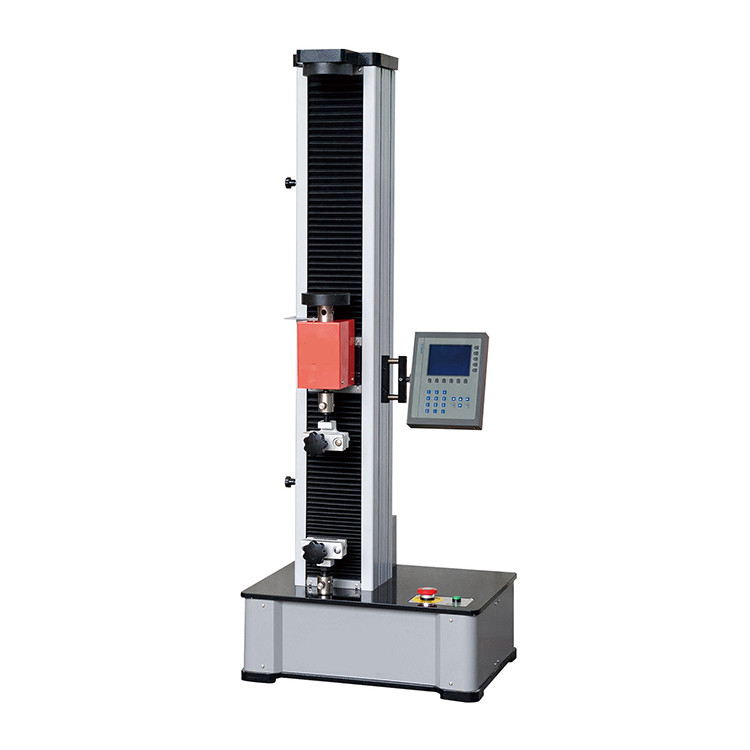

WDS-200 300 UTM electronic test equipment_Jinan Hensgrand Instrument Co., Ltd.

WDS-200 300 UTM electronic test equipment

Product description:

Suitable for metal, rubber, plastic, spring, textile, and components testing

Share With:

We"re here to help:
Easy ways to get the answers you need.

Send E-mail Chat Now

PRODUCT DETAILS
PRODUCT VIDEO

1.Application:

It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing.It is widely used in the corresponding industries, research and development, test institutes and training centers etc.

2.Standard:

ASTM, ISO, DIN, GB and other international standards.

3.Main Technical Parameters:

Model	WDS-200	WDS-300
Max. Load	200kN	300kN
Structure	Four-column floor model (upper is tensile and lower is compression)
Control Method	Single chip control
Load Accuracy	1 Class
Load Range	2%~100%F·S / (Or 0.4%-100% FS)
Displacement Resolution	0.04um
Test Speed	0.05-200mm/min (can be customized)
Tensile Space	600mm (can be customized)
Compression Space	500mm (can be customized)
Test Width	550mm (can be customized)
Power Supply	AC220V±10%, 50Hz (can be customized)
Grips	Wedge type, plate type and other grips as consumer’s demand
Dimension	27001210925mm
Weight	1556 KG
