WDW-02 Computerized Electronic Universal Testing Machine

Product description:

It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing.
  • Tensile Test of Plastics Composites And Extrusion (ISO 527)
  • WDW-E 50kN 100kN 5Ton 10Ton electromechanical ctm machine
  • Table Type 5kN 10kN 20kN computer control electronic computerized tensile testing machine
  • WDW-200E 200KN 20Ton computerized universal testing machine

Share With:

We"re here to help:
Easy ways to get the answers you need.
Send E-mailChat Now

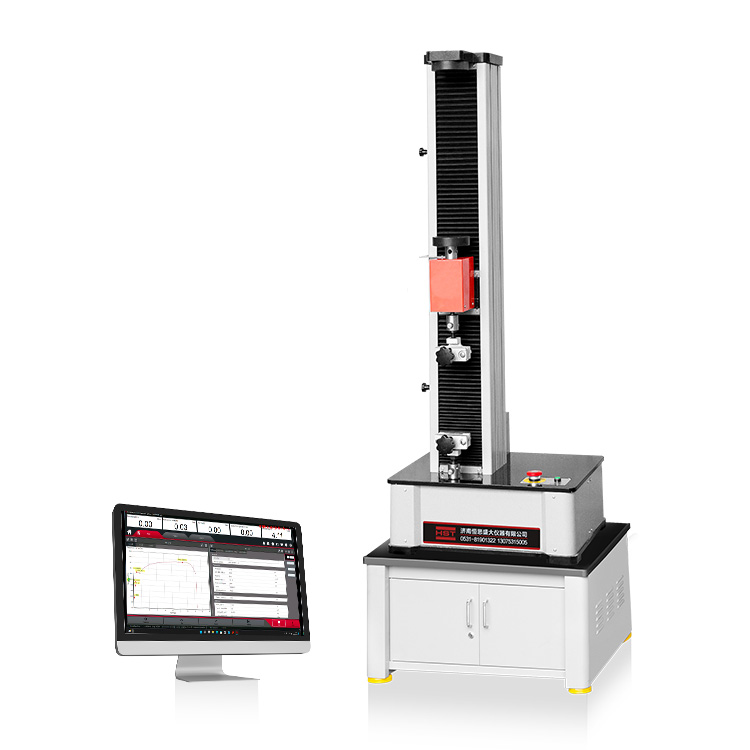

WDW-02 Computerized Electronic Universal Testing Machine

1.Application:
It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing.
It is widely used in the corresponding industries, research and development, test institutes and training centers etc.
2.Standard:
ASTM, ISO, DIN, GB and other international standards.
3.Main Technical Parameters:

Model WDW-02
Max. Load 200N
Structure Single Column Double Spaces
Control
Method
Computer Control
Load
Accuracy
1 Class
Load Range 2%~100% FS
Displacement Resolution 0.01mm
Test Speed 0.05~500mm/min
Tensile Space 600mm (Can be customized)
Compression Space 600mm (Can be customized)
Power Supply AC220V±10%, 50Hz (Can be customized)
Grips Wedge Type, Plate Type And Other Grips As Customers’ Demand
Dimension 425*400*1315mm
Weight 120.00 KG
