Tensile Test of Plastics Composites And Extrusion (ISO 527)

Product description:

Tensile Test of Plastics Composites And Extrusion (ISO 527)
  • WDW-E 50kN 100kN 5Ton 10Ton electromechanical ctm machine
  • Table Type 5kN 10kN 20kN computer control electronic computerized tensile testing machine
  • WDW-200E 200KN 20Ton computerized universal testing machine
  • 50kN 100kN 5Ton 10Ton Electronic universal testing system

Share With:

We"re here to help:
Easy ways to get the answers you need.
Send E-mailChat Now

Application:

Universal tensile test machine/Determination of tensile properties for moulding and extrusion plastics is used to test the mechanical properties of various materials such as static load, tensile, compression, bending, shearing, tearing, peeling and other mechanical properties of mechanical equipment. It is suitable for plastic plates, pipes, and other materials. Various physical and mechanical performance tests of profiles, plastic films and rubber, wires and cables, steel, fiberglass and other materials are developed for materials.

The test methods of ISO 527-1 can be used to test a wide variety of plastic materials, including:

  • Thermoplastics for molding and extruding.
  • Thermosetting molding materials
  • Fiber reinforced thermoset and thermoplastics composites
  • Thermotropic liquid crystal polymers

According to ISO 527-1, tensile testing of plastics is executed by pulling a test specimen along a major longitudinal axis at a constant rate of extension until failure of the plastic specimen occurs or until a predetermined stress or strain value. ISO 527-1 requires stress and strain measurements to be recorded through the plastic tensile test.

Plastic tensile test specimens are to be used to testing in accordance to ISO 527-1. Plastic components are not tested with the practices of ISO 527-1. The purpose of ISO 527-1 is to determine tensile properties of plastics, and not to determine stress behavior of plastic components.


Standards:

ISO 527, ISO 6259, GB/T 1040, ISO7500-1, ISO 5893,ISO 9969, ISO 13586


Main technical parameters

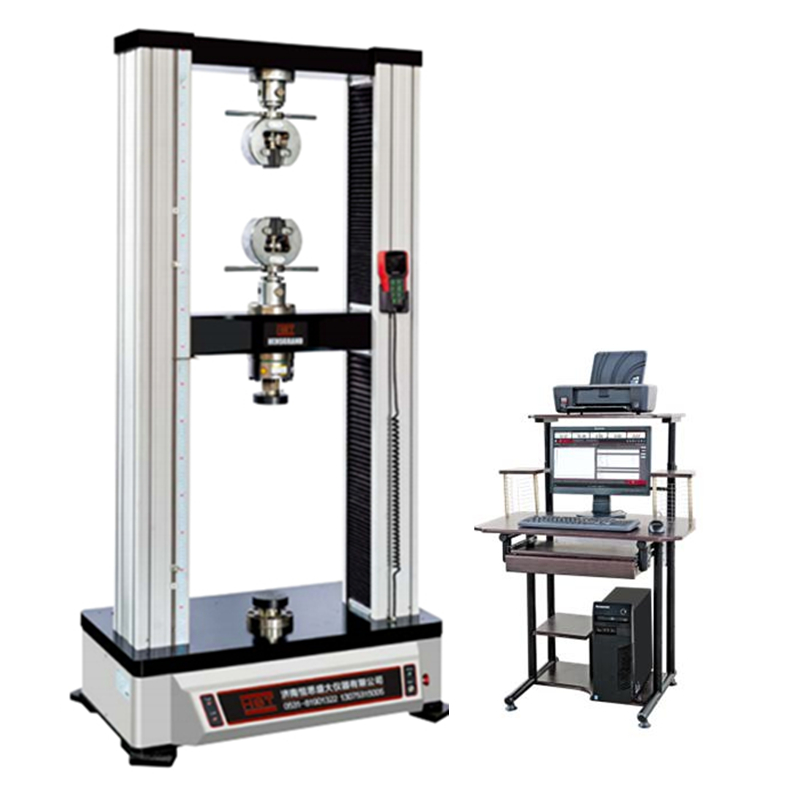

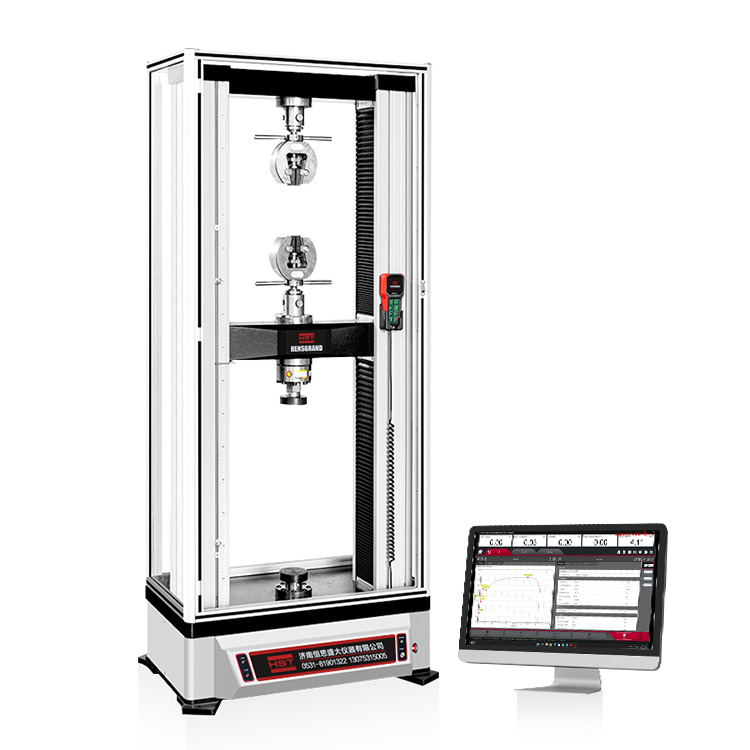

Model HSTWDW-10E
Type Double column model
Accuracy Grade Class 0.5
Force-measuring Range 0.4%~100%FS
Deformation-measuring Range 2%~100%FS
Deformation-measuring Accuracy ±1%
Crossbeam Displacement Resolution 0.001mm
Crossbeam Speed Range 0.05~1000mm/min
Displacement Speed Accuracy ≤ ±0.5%
Metal Extensometer Accuracy Grade ±0.5%
Test width 380mm
Tensile Space 700mm
Compression Space 1000mm
Clamps Tensile, compression, bending fixture
PC System Equiped with brand computer
Power Supply AC 220V±10%, 50Hz  (can be customized as customer request)
Size of the host 700*400*2000mm
Packing size & Weight 800*500*2100mm,about 350kg
