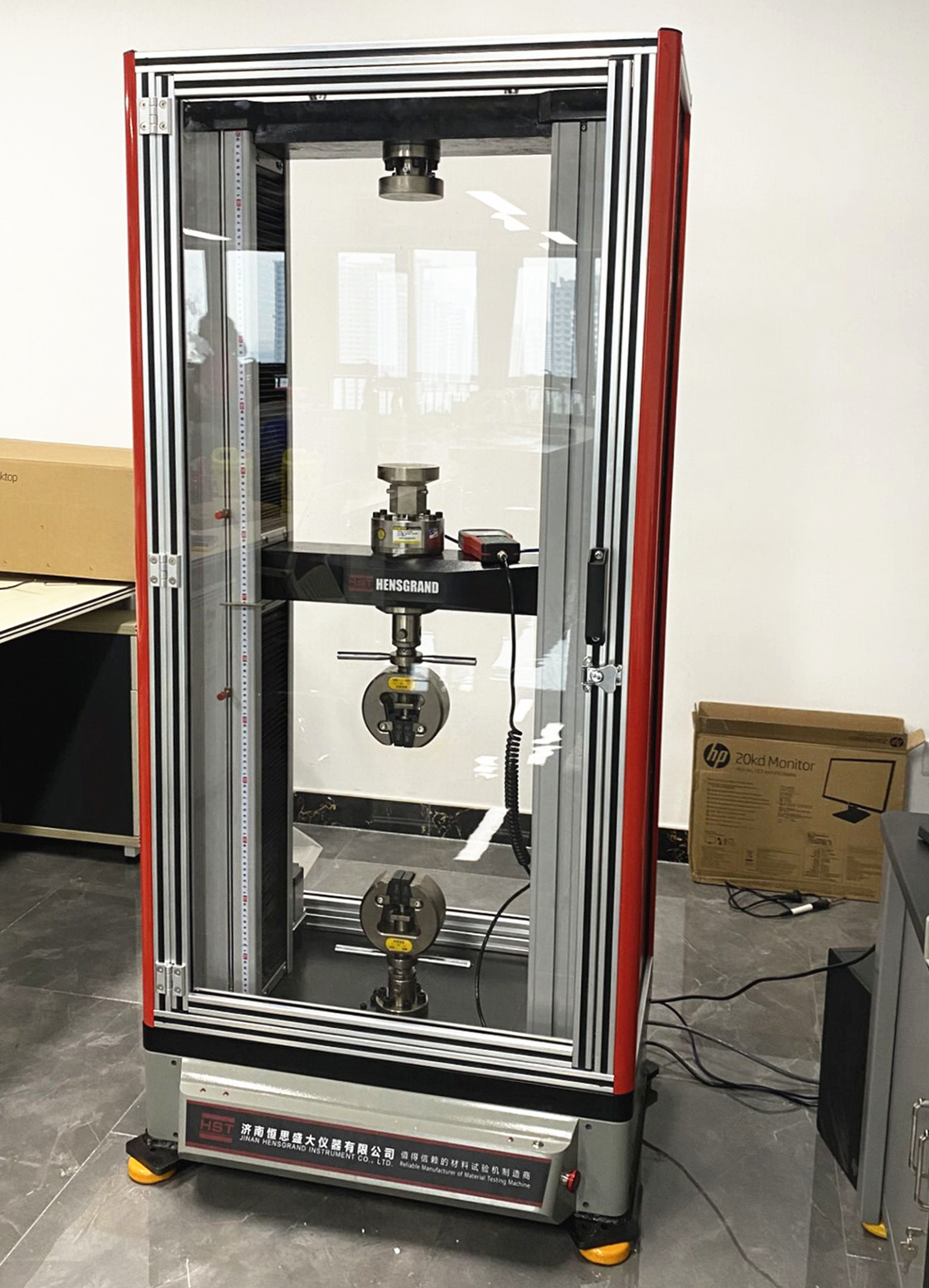

New Model 10KN / 20KN Computer Control Electronic Universal Testing Machine

Product description:

New Model 10KN / 20KN Computer Control Electronic Universal Testing Machine
  • Tensile Test of Plastics Composites And Extrusion (ISO 527)
  • WDW-E 50kN 100kN 5Ton 10Ton electromechanical ctm machine
  • Table Type 5kN 10kN 20kN computer control electronic computerized tensile testing machine
  • WDW-200E 200KN 20Ton computerized universal testing machine

Share With:

We"re here to help:
Easy ways to get the answers you need.
Send E-mailChat Now

1. Application


It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.


2. Standards


ASTMA370, ASTME4, ASTME8, ASTME9, ISO6892, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002,

GB 16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008,GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.

3.Specifications

Model WDW-10 WDW-10E WDW-20 WDW-20E
Max. Load(kN) 10 10 20 20
Load accuracy Class 1 Class 0.5 Class 1 Class 0.5
Load range 2%~100%F·S 0.2%~100%F·S 2%~100%F·S 0.2%~100%F·S
Load resolution 1/300000
Resolution of deformation 0.04um
Accuracy of displacement Within±0.5%of indicating load
Resolution of displacement 0.01mm
Test speed(mm/min) 0.05-1000 stepless arbitrary setting
Speed accuracy within ±1% / ±0.5% of set speed
E-Tensile space(mm) 800 (can be customized)
E-Compression space(mm) 800 (can be customized)
D-Test width(mm) 400 (can be customized)
F-Beam travel distance(mm) 1140
H-Workbench thickness(mm) 30
I-Base height(mm) 210
Power supply AC220V±10%,50Hz/60Hz (can be customized)
