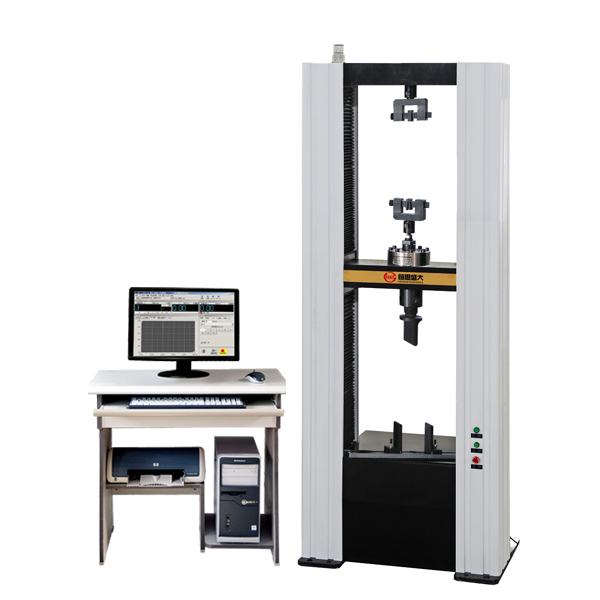

Computer Control Wood-based Panel Universal Testing Machine
Product description:
omputer control wood-based panels testing machine made for the wood manufacturing and quality supervision station.
Share With:
Application:

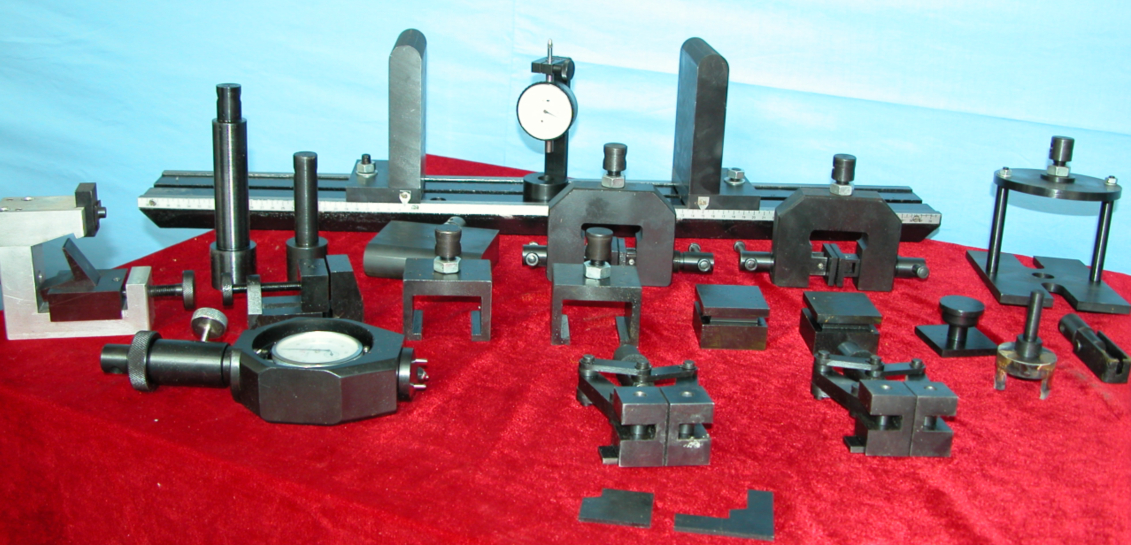

Computer control wood-based panels testing machine made for the wood manufacturing and quality supervision station. Can do the following test: bone strength, surface bone strength, tensile strength, static bending strength, modulus of elasticity test, screw griping test and shear test of of MDF,shaving board, plywood, core-board.
Standard:
GB/T17657-1999, EN, ASTM, GB/T 16491-1996
Technical parameter:
|
Model |
MWW-10 |
MWW-20 |
MWW-50 |
|
Max test load |
10kN |
20kN |
50kN |
|
Control method |
Computer automatically control |
||
|
Accuracy |
1 class |
||
|
Test load test range |
2%～100%F·S |
||
|
Test value relative error |
≤±1% |
||
|
Displacement value relative error |
≤±1% |
||
|
Displacement resolution |
0.01mm |
||
|
Speed adjusting range |
0.05-500mm/min |
||
|
Speed relative error |
≤±1% |
||
|
Effective tensile space (mm) |
700mm |
||
|
Effective compression space (mm) |
650mm |
||
|
Effective test width (mm) |
400 |
||
|
Power supply |
AC220V±10%，50Hz |
||
