SQ-60 Manual Metallographic Sample Cutting Machine

Product description:

Model SQ-60 Metallographic specimen cutting machine can be used to cut various metal and non-metal materials so as to get specimen and observe the metallographic or lithofacies structure. It has cooli
  • DTQ-150 Metallographic Specimen Cutting Machine
  • Q-2A metallographic sample cutting machine
  • Q-2 Metallographic Sample Cutting Machine
  • LC-200XP Metallographic Specimen Cutting Machine

Share With:

We"re here to help:
Easy ways to get the answers you need.
Send E-mailChat Now

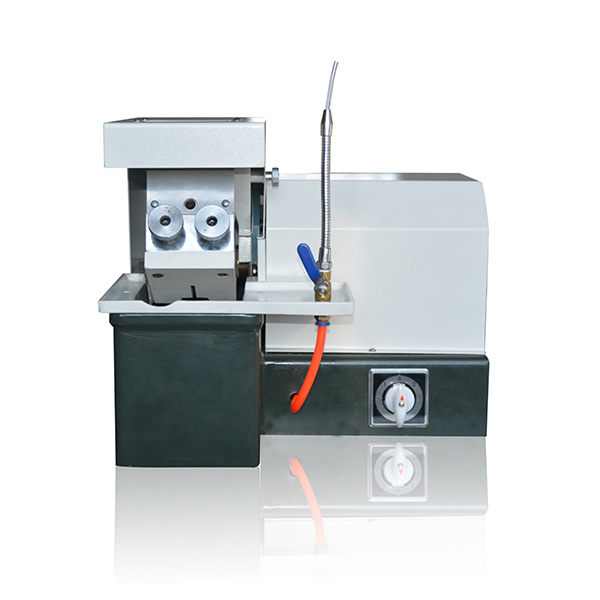

SQ-60 Manual Metallographic Sample Cutting Machine
Application:
Model SQ-60 Metallographic specimen cutting machine can be used to cut various metal and non-metal materials so as to get specimen and observe the metallographic or lithofacies structure. It has cooling system so as to clear up the heat produced during cutting and avoid to burn the metallographic or lithofacies structure of specimen because of superheat. This machine features easy operation and reliable safety. It is the necessary specimen preparing instrument for using in factories, scientific research institutes and laboratories of colleges.
Main specifications:

       Model  SQ-60
Max Cutting Capacity φ60mm
Cooling method T-slot worktable, dual drive vises
Outside cooling system
Cutting wheels size 250x2.5x32mm
Power  2.2kw
Spindle Speed 2800rpm
power supply 380V,50Hz
Dimension 230X240mm
Weight 75KG
