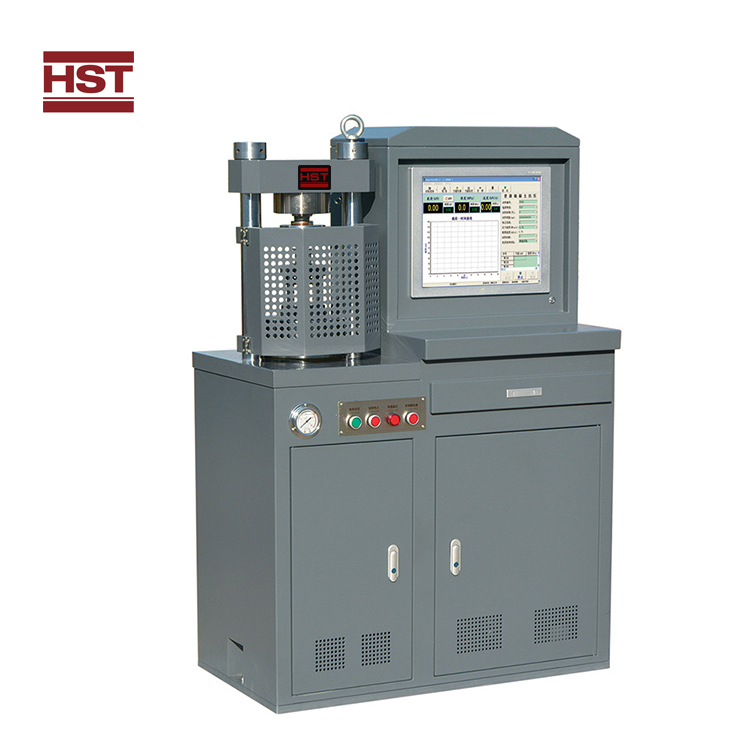

Ceramic tile compression testing equipment
Product description:
Ceramic tile compression testing equipment
Share With:
Applications：
This machine is mainly designed for testing the compression strength of cement and mortar. It can fulfill the test automatically according to the requirements, which lists in the inspection method for the strength of cement and mortar, also possess the below advantages, such as: realizing screen display of test data and test curves. It is ideal inspection equipment for factories, laboratory and education, etc.
Standards:
It is conformed to EN 196, ISO 679, and ASTM C 109 etc.
Specifications:
|
Model |
YAW-300B |
YAW-300C |
YAW-1000B |
|
Max. load |
300kN |
300kN |
1000kN |
|
Load measuring range |
4%-100%FS |
||
|
Load accuracy |
±1.0% |
||
|
Control way |
Computer control auto loading progress |
||
|
Constant loading speed |
0.3KN/S～10KN/S |
||
|
Compression platen(mm ) |
Φ120 |
Φ120 |
Φ230 |
|
Distance between two platens (mm ) |
210 |
180 |
280 |
|
Distance between columns (mm ) |
180 |
180 |
|
|
Piston stroke |
80mm |
150mm |
|
|
Power |
AC380V/220V |
||
