digital display compression and flextural strength testing machine

Product description:

Share With:

We"re here to help:
Easy ways to get the answers you need.

1.Application:

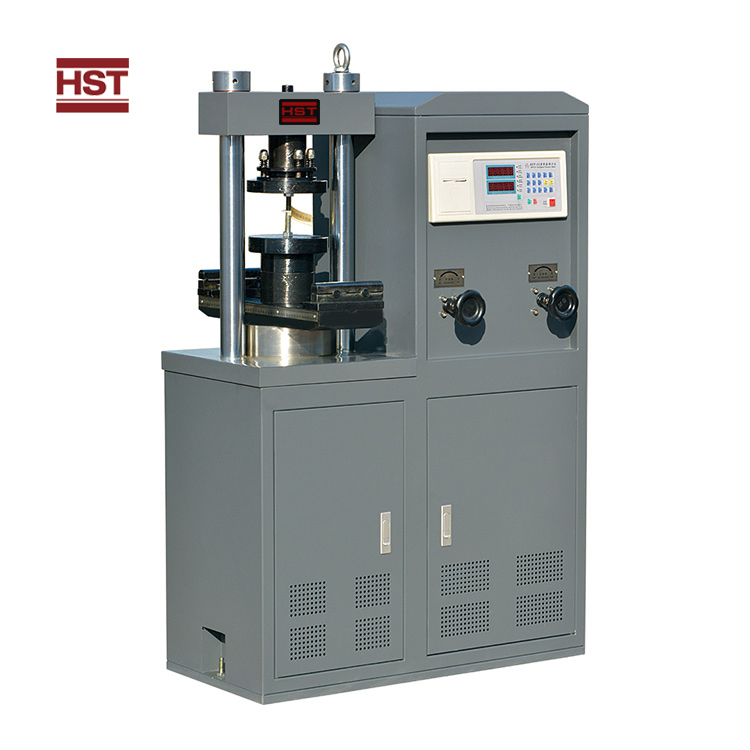

YES-100 / 200 / 300 Hydraulic Power Digital Display Compression Testing Machine mainly

used for brick, cement, concrete construction material and other material compression resist testing.

Widely used in metallurgy, building materials, space flight and aviation, colleges and universities,

R&D institution lines. The test operation and data processing meets standard requirements.

2.Product Description:

Structure

Mainly composed by main unit, oil source and measuring control system.

Measuring Control

System

The machine adopts hydraulic loading, the electronic testing load.

With digital display load, loading rate, keeping maximum load, overload

protection and outage data keeping and other.

Safety Protection

Device

When the test force exceed the 3% of the maximum test force, overload

protection, the oil pump motor stop.

3.Main Specifications:

Model	YES-100	YES-200	YES-300
Basic Parameter
Max. Load	100 KN (10 TONS)	200 KN (20 TONS)	300 KN (30 TONS)
Load Accuracy	≤±1%
Piston Stroke	80mm
Upper Pressure Plates Size	Φ170mm
Lower Pressure Plates Size	Φ170mm
Max. Compression Space	210mm
Host Dimension	8504001350mm
Weight	400 KG
Power	1.0 KW
Power Supply	220V, 50Hz (Can Be Customized)
Printer	Thermal Micro Printer
Printing Paper Size	Wide 57mm
Oil Pump Motor Band	SIEMENS Oil Pump Motor Brand
Test Control System Parameters
Range Of Test Force	10%~100% FS (10KN~100KN)	10%~100% FS (20KN~200KN)	10%~100% FS (30KN~300KN)
Force Load Way	Manual Control Load Way
Test Date Display	Dual Row Nixie Tubes For Force and Loading Rate Display
