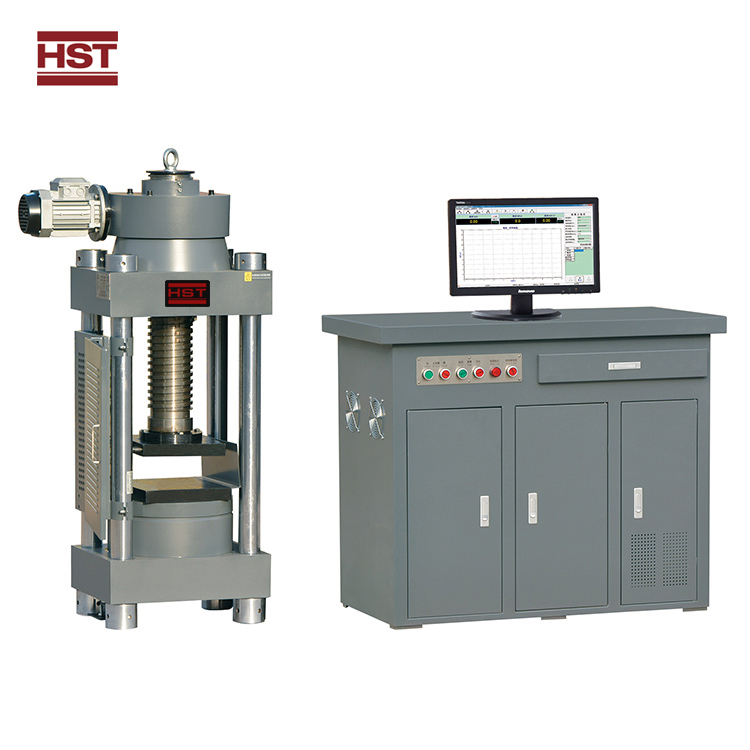

3000kn concrete compression testing machine computer control

Product description:

3000kn concrete compression testing machine computer control
  • HCBT-5000 Electric Cement Bending Test Machine
  • YAW-5000F Computer Control Electro-hydraulic Servo Compression Testing Machine
  • concrete and cement pipe compression test machine
  • YAW-C Computer Control Hydraulic Compression and Bend Testing Machine

Share With:

We"re here to help:
Easy ways to get the answers you need.
Send E-mailChat Now

Application

Digital display compression testing machine mainly used for concrete and other material compression resist testing. Widely used in metallurgy, building materials, space flight and aviation, colleges and universities, R & D institution lines. The test operation and data processing meets standard requirements.

Main Specifications

Model

YES-2000D

YES-3000D

Max. load

2000kN/200Ton

3000kN/300Ton

Machine Class

1 class

Range of test force

4% ~100%FS

Testing space adjust method

Electric adjust

Indicating value accuracy

±1%

Piston stroke

50mm

80mm

Distance between platens

320mm

Upper platen size

240×240mm

(Can be customized)

265×265 mm

(Can be customized)

Lower platen size

250×300mm

(Can be customized)

360×285

(Can be customized)

Display

LCD

Power supply

AC380V/50Hz/3 phase(can be customized)

Size

950×420×1350 mm

1000×500×1500

Weight

950kg

1500kg
