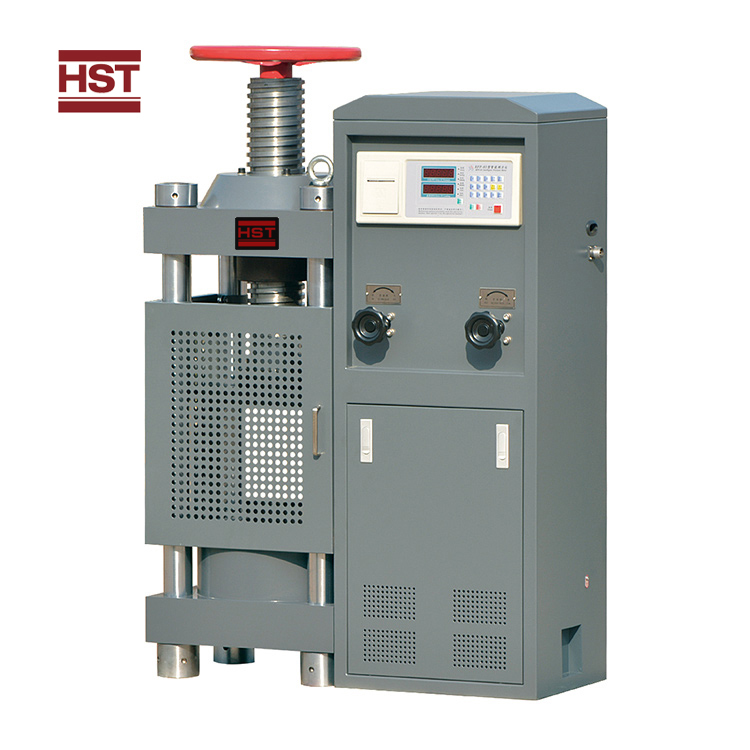

300ton concrete cube test machine
Product description:
300ton concrete cube test machineApplication
Digital display compression testing machine mainly used for concrete and other material compression resist testing. Widely used in metallurgy , building materials, space flight and aviation, colleges and universities, R&D institution lines. The test operation and data processing meets standard requirements.
Main Specifications
Model | YES-2000 | YES-3000 |
Max. load | 2000kN | 3000kN |
Class | 1 class | |
Testing space regulating way | Manual ball screw adjust | |
Control way | Manual control load way | |
Oil source control cabinet structure form | One-piece bench oil source control cabinet | |
Range of test force | 4% ~100%FS | |
Indicating value accuracy | ±1% | |
Piston route | 50mm | 50mm |
Range between the working tables | 320mm | 320mm |
Pressure plates size | 250*250mm(Can be customized) | |
Display | LCD | |
Power supply | 2.1Kw/AC380V |
