Pressure test equipment
Product description:
Pressure test equipment
Share With:
Application

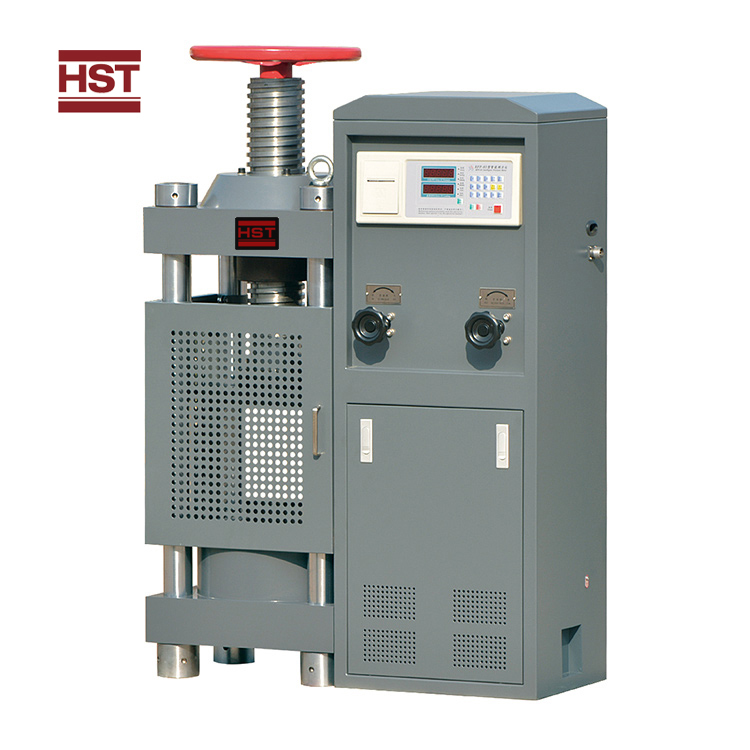

Digital display compression Testing machine mainly used for concrete and other material compression resist Testing. Widely used in metallurgy , building materials, space flight and aviation, colleges and universities, R＆D institution lines. The test operation and data processing meets standard requirements.
Main Specifications
| Model | YES-1000 | YES-2000 |
| Max. load | 1000kN | 2000kN |
| Class | 1 class | |
| Testing space regulating way | Manual ball screw adjust | |
| Control way | Manual control load way | |
| Oil source control cabinet structure form | One-piece bench oil source control cabinet | |
| Range of test force | 4% ~100%FS | |
| Indicating value accuracy | ±1% | |
| Piston route | 50mm | 50mm |
| Range between the working tables | 320mm | 320mm |
| Pressure plates size | 250*250mm（Can be customized） | |
| Display | LCD | |
| Power supply | 2.1Kw/AC380V | |
