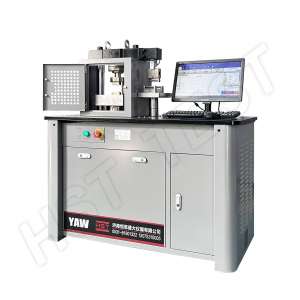

YAW-300D/300G Computer Control Electric Compression Testing Machine

Product description:

This machine adopt computer auto control, with constant test speed, constant stress, test force keeping and other control mode.
  • 2000 3000kn Tube Ring Flattening Testing Machine
  • YAW-3000H Microcomputer automatic comprssion testing machine
  • Computer Control Electric Compression Testing Machine
  • YES-100 200 300 Digital Display Compression Testing Machine

Share With:

We"re here to help:
Easy ways to get the answers you need.
Send E-mailChat Now

1. Application

This machine adopt computer auto control, with constant test speed, constant stress, test force keeping and other control mode. The computer realize test data and test curve’display, save,manage function, can print test report. With special fixtures, can test other material compression and flexual testing.

2. Features:

2.1 This testing machine adopt AC servo system drive the AC servo motor,by precision reduction gears drives the ball screw,with high test accuracy,low noise.

2.2 Without pressure oil leakage and proportional valve blocking, low noise, more reliable.

2.3 Window control and dealing software, design more reasonable.

2.4 Can arbitrarily set pressure value, pressure time, auto calculate test result.

2.5 Advanced auto control function, can do single or batch test.

2.6 Auto stop,after sample broken.

2.7 With over load protection.

3. Main Specifications

Model

YAW-100D

YAW-300G



Max compression test force(kN)

300kN

300



Max bending test force(kN)

/

10

Test Accuracy

±1%

Test measurement range

2%-100%FS

Control way

Computer control auto loading progress

Constant loading speed

0.1KN/S~10KN/S

Test space adjustment method

Block adjustment test space

Speed

0.01-50mm/min

Max compression space

200mm

Upper and lower compression plates size

Φ280

Size

570*410*1340mm

Power supply

220V, 50HZ, 1.5 KW
