Pipe pressure testing equipment

Product description:

Pipe pressure testing equipment
  • HCBT-5000 Electric Cement Bending Test Machine
  • YAW-5000F Computer Control Electro-hydraulic Servo Compression Testing Machine
  • concrete and cement pipe compression test machine
  • YAW-C Computer Control Hydraulic Compression and Bend Testing Machine

Share With:

We"re here to help:
Easy ways to get the answers you need.
Send E-mailChat Now

Applications

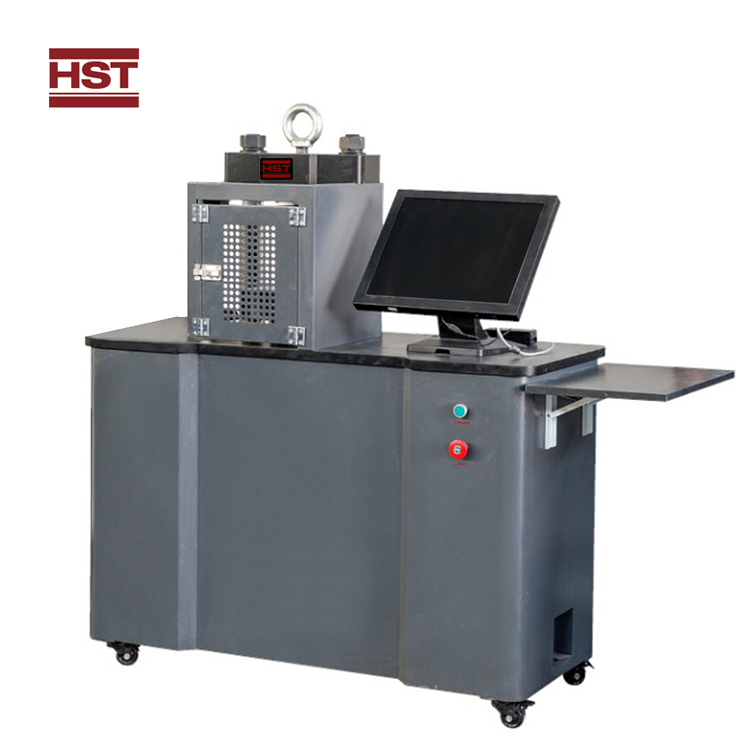

This machine is mainly designed for testing the compression strength of cement and mortar. It can fulfill the test automatically according to the requirements, which lists in the inspection method for the strength of cement and mortar, also possess the below advantages, such as: realizing screen display of test data and test curves. It is ideal inspection equipment for factories, laboratory and education, etc.

Standards:

It is conformed to EN 196, ISO 679, and ASTM C 109 etc.

Specifications:

Model

YAW-300B

YAW-300C

YAW-1000B

Max. load

300kN

300kN

1000kN

Load measuring range

4%-100%FS

Load accuracy

±1.0%

Control way

Computer control auto loading progress

Constant loading speed

0.3KN/S~10KN/S

Compression platen(mm )

Φ120

Φ120

Φ230

Distance between two platens (mm )

210

180

280

Distance between columns (mm )

180

180



Piston stroke

80mm

150mm

Power

AC380V/220V
