Concrete compression testing equipment_Jinan Hensgrand Instrument Co., Ltd.

Concrete compression testing equipment

Product description:

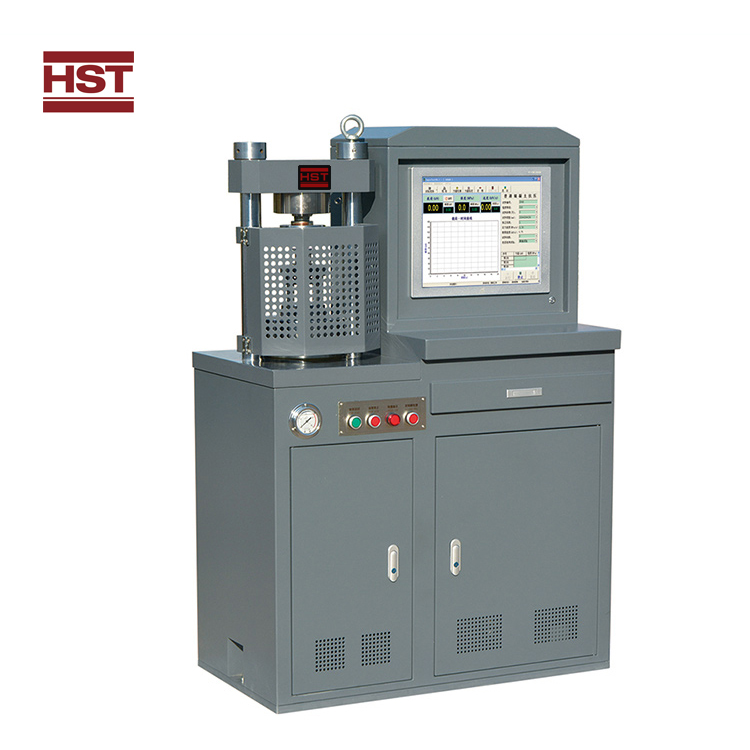

Concrete compression testing equipment

Share With:

We"re here to help:
Easy ways to get the answers you need.

Send E-mail Chat Now

PRODUCT DETAILS
PRODUCT VIDEO

1. Function
The testing machine is mainly used to test compression strength of various concrete in industry use. The testing machine meets test standard GB/T16752-97 Test Method of Concrete and Reinforced Concrete Drainage and Sewer Pipe,GB/T11836-99 Concrete and Reinforced Concrete Sewer Pipe.

2.Main specification

SN

Item

Specification

1

Max. load

300KN

500kN

1000KN

2

Measuring range

6kN~300kN

10kN-500kN

20kN-1000kN

3

Load measuring method

Load cell

4

Precision grade

±1%

5

Ram stroke (mm)

150mm

6

Display Mode

Digital Display

7

Loading Method

manual

8

Suitable Drain Pipe Size

≤Φ2000mm（Φ2000mm-Φ3000mm customize ）

9

Size

2500×3000×3000mm

10

Weight

2100kg
