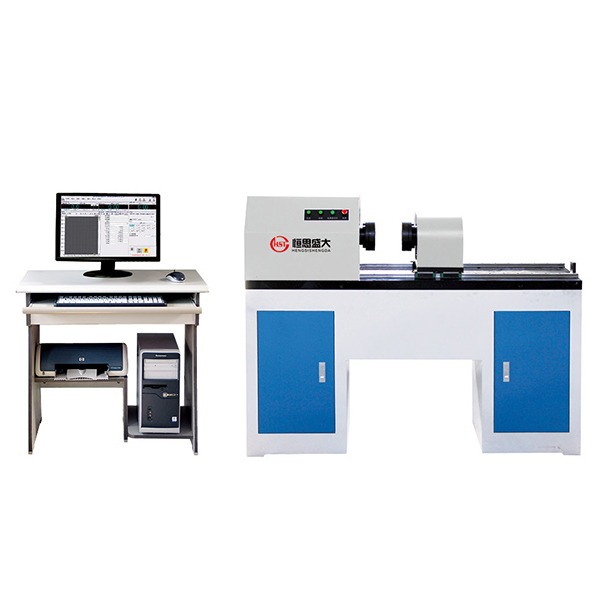

torsion test equipment

Product description:

It is mainly used for the torsion test of metal and nonmetal materials, as well as the torsion test for parts and components.
  • HEZ-10 Metal Wire Torsion Testing Machine
  • Computer Controlled Bolt nut Torsion Testing Machine
  • HST-NW 50N.m-2000N.m Universal Joint Torsion Fatigue Testing System
  • HST-NW Series Computer Control Material Torsion Testing Machine(500-10000NM)

Share With:

We"re here to help:
Easy ways to get the answers you need.
Send E-mailChat Now
1.Application:
It is mainly used for the torsion test of metal and nonmetal materials, as well as the torsion test for parts and components.It is an essential instrument to measure torsion properties of materials for mechanics laboratories of aviation industry, construction industry, scientific research dept, universities and industrial enterprises etc.
2.Technical Parameter:

Model

NDW

-100

NDW

-200

NDW

-500

NDW

-1000

NDW

-2000

NDW

-3000

NDW

-5000

NDW

-10000

Max Torque

100N/m

200N/m

500N/m

1000N/m

2000N/m

3000N/m

5000N/m

10000N/m

Machine Level

1 Class

Torsion Angle

Measurement Range

2%-100%FS

Control Method

Constant Torque And Constant Speed Rotation,

Constant Speed Twist Angle Of The Closed Loop Control Mode

Torque Display

Resolution

1/20000

The Accuracy Of

Torque Values

±1%

The Accuracy Of

Torsion Angle

Value

Better Than±0.5%

Torsion Angle Display Resolution

1/20000

The Accuracy Of Angle Values

≤±1%

Angle Display Resolution

0.01°

Torsional Angular Rate Control Range

0.05-800°/min

Max. Reading Of

Torsion Angel

99999°

Max. Distance

Between Two

Collets

600mm

Power

220V±10%, 50Hz
