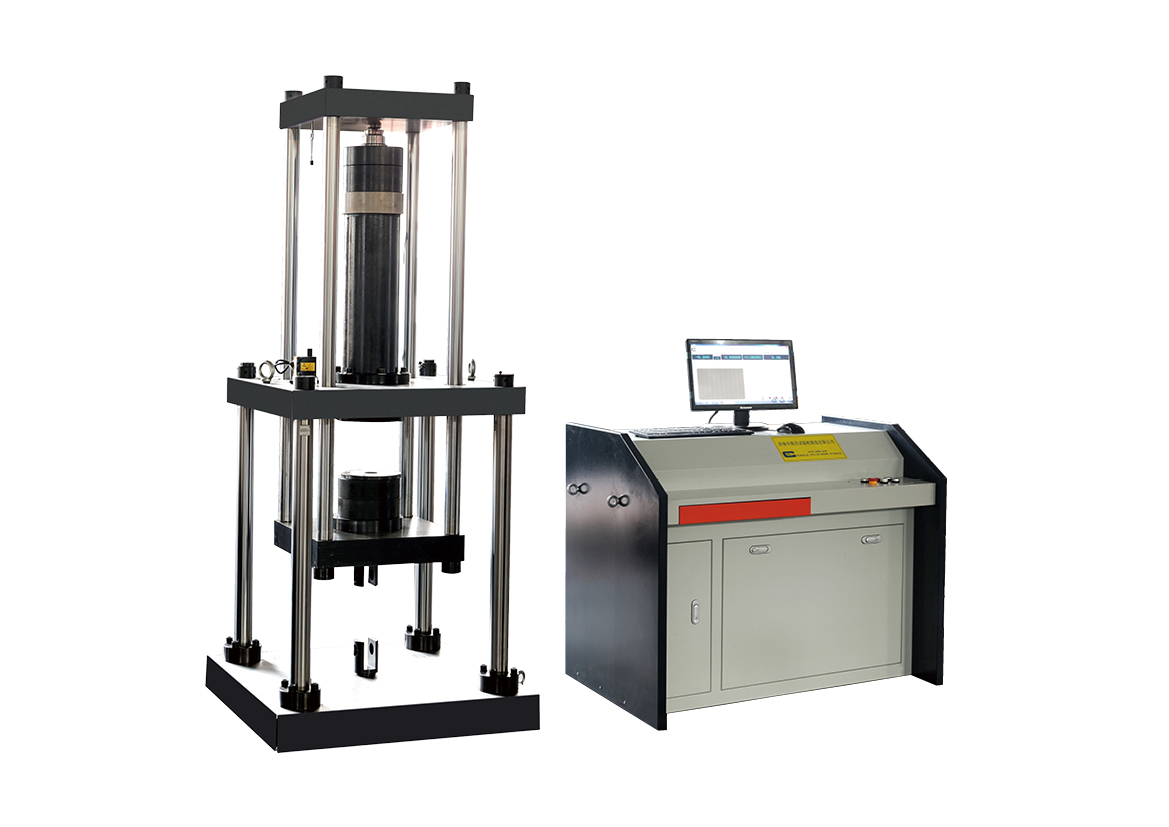

50kN - 50MN Force Calibration Machine

Product description:

The measurement and measurement of the standard force gauge, the measurement of the load cell and the load cell (non-linearity, repeatability, sensitivity, etc.).
  • New Model 10KN / 20KN Computer Control Electronic Universal Testing Machine
  • WAW-1000A/1500A/2000A Hydraulic Universal Testing Machine
  • WDW-600KN Computer Control Electronic Universal Testing Machine
  • WDW-500KN Computer Control Electronic Universal Testing Machine

Share With:

We"re here to help:
Easy ways to get the answers you need.
Send E-mailChat Now

Applications:

Superimposed force standard machine
The measurement and measurement of the standard force gauge, the measurement of the load cell and the load cell (non-linearity, repeatability, sensitivity, etc.).
Comply with JJG1116-2015 "Superimposed Force Standard Machine Verification Regulations", JJG669-2003 "Weighing Sensor Calibration Procedures", JJG144-2007 "Standard Force Measuring Instruments Verification Regulations"
This machine is suitable for force value transmission units such as metrology institutes, aviation metrology, aerospace metrology, national defense metrology, and sensor manufacturers.

Specification:

Test force range

50kN ~ 50MN

Maximum test force

1000kN (1MN)

Test force measurement range

2%-100% F.S

Force value error (in, return)

Within the range of 2%-10%F.S, the test data is better than ±0.03%;

Test data is better than ±0.01% in the range of 10%-100%F.S

Force value repeatability

Within the range of 2%-10%F.S, the test data is better than 0.03%;

Within the range of 10%-100% F.S; test data is better than 0.01%

Initial load discrimination

10% FS, better than 0.01%

Load volatility

Within the range of 2%-10% F.S, the test data is better than 0.01%;

Test data in the range of 10%-100% F.S is better than 0.003%


Azimuth error

Within the range of 2%-10%F.S, the test data is better than 0.06%;

Test data is better than 0.02% in the range of 10%-100%F.S

Test space (length X width X height)

1MN (600 X 600 X 800mm)
