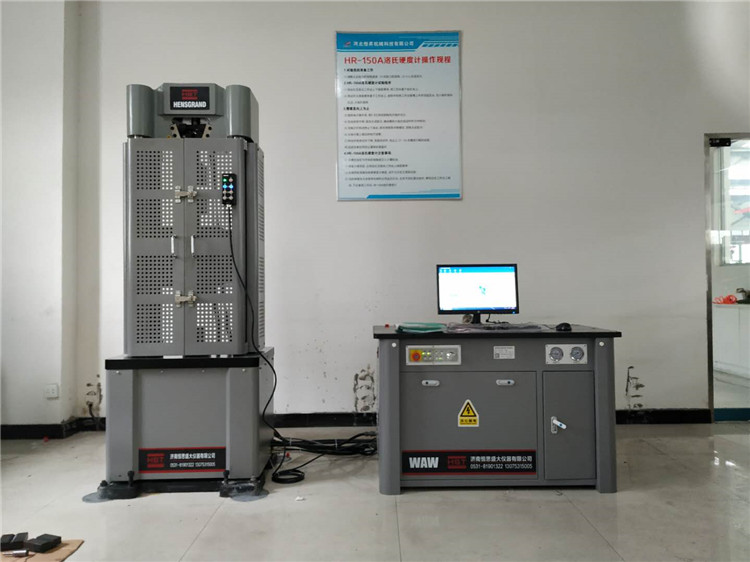

microcomputer universal testing machine

Product description:

The machine adopts hydraulic loading, Computer control, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials.
  • WAW-F Electro-hydraulic Servo Strength Testing Machine(200Ton, 300Ton)
  • LAW-H Computer Control Steel Strand Tension Testing Machine
  • WAW-F Steel rebar Single Test Space Hydraulic Tensile Testing Machine(600kN, 1000kN)
  • WAW-F 1000kN,100Ton Electro-hydraulic Servo PC Strand Tensile Strength Testing Machine

Share With:

We"re here to help:
Easy ways to get the answers you need.
Send E-mailChat Now
1. Application
The machine adopts hydraulic loading, Computer control, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on.It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force.

2. Standards
ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.
3. Main specifications
Model WAW-300D
Structure 6 column
Control way constant stress uniform deformation constant displacement
three closed loop control and program control
Max.load 300kN
Load accuracy ≤±1% /≤± 0.5%
Load range 2%-100%FS /0.4%-100%FS
Load resolution 1/300000
Deformation Measurement Range 2%~100%FS
Deformation accuracy ≤±1%/± 0.5%
Displacement resolution 0.01mm
Displacement error ≤±0.5%
Max.piston stroke 250mm
Max piston moving speed 0-140mm/min Manual adjustment
Crosshead lifting speed 200 mm/min
Max. tension test space 650mm (can customize)
Max.Compression Test Space 500mm (can customize)
Column clearance 430mm
Clamping method Hydraulic clamp
Round specimen clamping range Φ10-20 , Φ20-Φ32 (Φ4-Φ10 Optional)
Flat specimen clamping range 0-15 (15-30 Optional)
Flat specimen clamping width 75mm
Compression plate size φ160mm
Bending roller distance 450mm
Width of bending rollers 120mm
Power supply 3-phase,AC380V, 50Hz(can be customized)
Weight (kg) 900
