rubber tensile testing machine with long-travel extensometer

Product description:

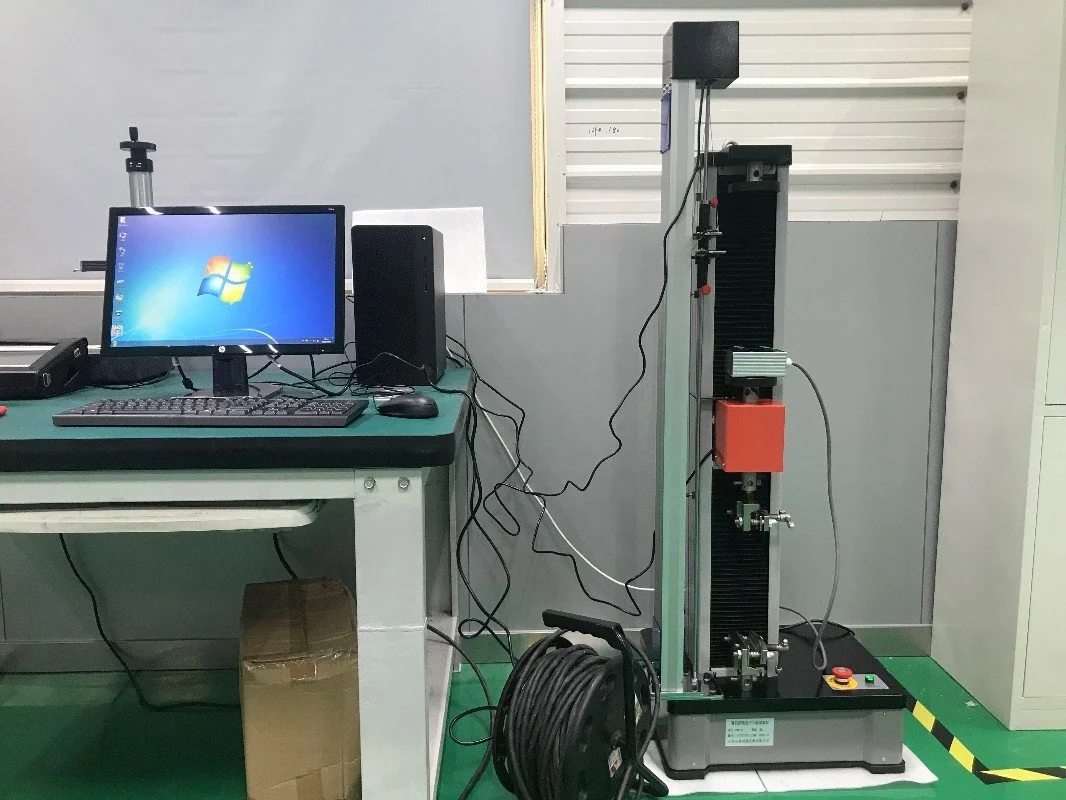

rubber tensile testing machine with long-travel extensometer
  • EWAL Series Electronic Horizontal Tensile Test Machine
  • Rail Static Bend Testing Machine
  • Rotating Bending Fatigue Testing Machine
  • HUT1130  Ultrasonic Flaw Detector

Share With:

We"re here to help:
Easy ways to get the answers you need.
Send E-mailChat Now

Application:

It is applicable for wide range of material for tension, compression, bending, shearing and low cycle test. Suitable for metal, rubber, plastic, spring, textile, and components testing. It is widely used in the corresponding industries, research and development, test institutes and training centers etc.


Standard:

ASTM, ISO, DIN, GB and other international standards.


Main Technical Parameters:

Model

WDW-01,02,03,05,1,2,3,5

Structure

Single column double spaces

Max. Load(kN)

0.1, 0.2, 0.3, 0.5, 1, 2, 3 ,5

Material

All aluminum alloy surface spray painting shell

Load accuracy

ISO 7500 Class 1/ Class 0.5

Load range

2%100%F·S/ 0.2%100%F·S

Load resolution

1/ 30000

Resolution of displacement

0.01mm

Test speed(mm/min)

0.05-500 stepless arbitrary setting

Speed accuracy

within ±1% set speed

E-Tensile space(mm)

600 (can be customized)

E-Compression space(mm)

600 (can be customized)

D-Test width(mm)

100

F-Beam travel distance(mm)

772

H-Workbench thickness(mm)

26

G-Base height(mm)

158

Power supply

AC220V±10%50Hz/60Hz(can be customized)

Video show

https://youtu.be/HY7xD6LTbug
