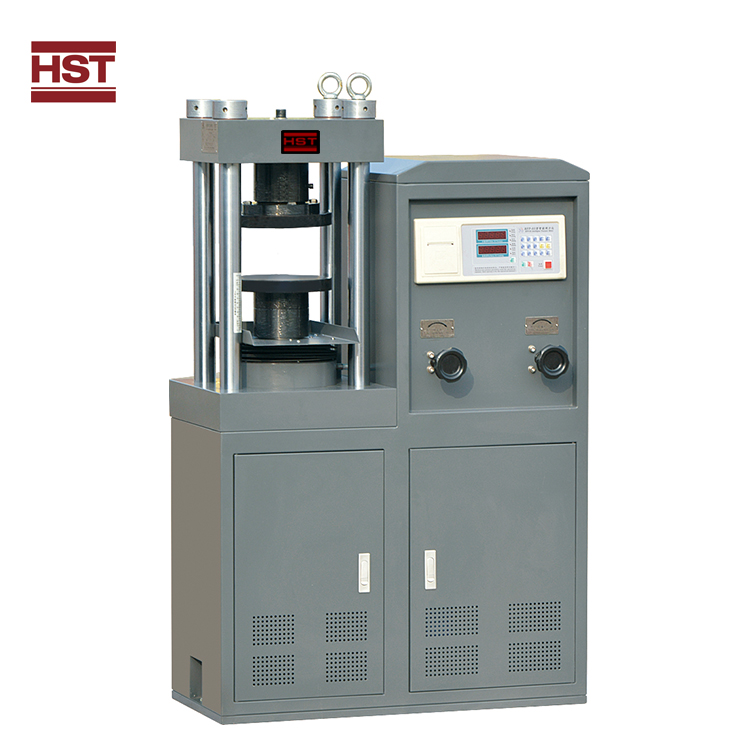

2000kn/3000kn used concrete testing machine

Product description:

2000kn 3000kn used concrete testing machine
  • HCBT-5000 Electric Cement Bending Test Machine
  • YAW-5000F Computer Control Electro-hydraulic Servo Compression Testing Machine
  • concrete and cement pipe compression test machine
  • YAW-C Computer Control Hydraulic Compression and Bend Testing Machine

Share With:

We"re here to help:
Easy ways to get the answers you need.
Send E-mailChat Now

1. Application

The Compression Testing Machine with PC&Servo Control is designed for testing the compressive strength of building materials such as brick, cement mortar and concrete; it is electro-hydraulically powered and the pressure applied on the specimen can be displayed directly; The maximum force value can be maintained and the data measured can be saved when the power is off; The test data can be processed automatically and the test report can be printed

2. Main Specifications

Model

YES-3000E

Max. load

3000kN/300Ton

Machine Class

1 class

Range of test force

4% ~100%FS

Host Structure

           Double electric screw ball adjust test space

Indicating value accuracy

±1%

Piston stroke

200mm

Distance between upper and lower platen

650mm

Upper and lower platen size

Φ300mm (Can be customized)

Display

LCD

Power supply

AC380V/50Hz/3 phase(can be customized)

Size

960×740×2080 mm

Weight

3100 kg
