COMPANY PRODUCT

2000kn compression testing machine

Product description:

2000kn compression testing machine
  • HCBT-5000 Electric Cement Bending Test Machine
  • YAW-5000F Computer Control Electro-hydraulic Servo Compression Testing Machine
  • concrete and cement pipe compression test machine
  • YAW-C Computer Control Hydraulic Compression and Bend Testing Machine

Share With:

We"re here to help:
Easy ways to get the answers you need.
Send E-mailChat Now

1.Application:

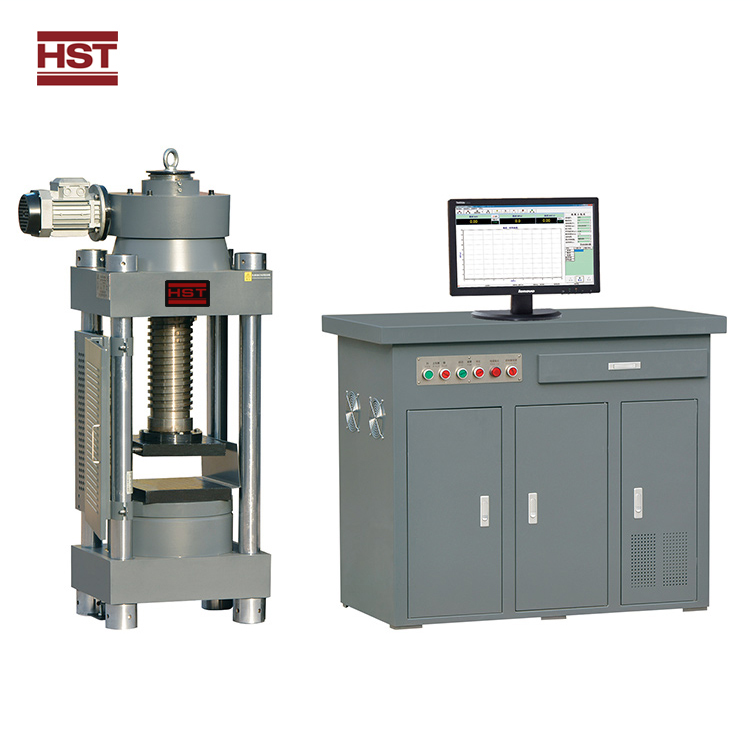

YAW-2000D Computer Control Hydraulic Power Constant Stress Compression Testing Machine

mainly used for concrete rupture strength testing, cement, plastic sand, and red brick building

materials compression resist testing.

Widely used in metallurgy, building materials, space flight and aviation, colleges and universities,

R&D institution lines. The test operation and data processing meets standard requirements.

2.Main Specifications:

Model

YAW-2000D

Basic Parameter

Max. Load

2000 KN (200 TONS)

Load Accuracy

≤±1%

Piston Stroke

50mm

Upper Pressure Plates Size

240*240mm

Lower Pressure Plates Size

300*250mm

Max. Compression Space

320mm

Host Dimension

700*430*1350mm

Weight

1090 KG

Power

2.0 KW

Power Supply

220V, 50Hz (Can Be Customized)

Computer

Lenovo Computer

Printer

HP A4 Inkjet Printer

Printing Paper Size

A4

Oil Pump Motor Band

SIEMENS Motor

Test Control System Parameters

Range Of Test Force

1%~100% FS (20 KN~2000 KN)

Relative Error Of Stress Rate Control

±2%

Adjust Range Of Stress Rate Control

0.00025/s~0.0025/s

Control Range Of Force Holding

0.3%~100% FS

Relative Error Of Force Holding Control

±2%

Force Load Way

Computer Control

Test Date Display

Computer Display

Test Curve

Accurate Digital Simulation Curve
